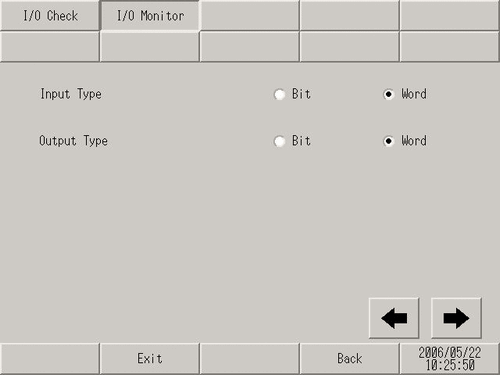

Bit/Word selection screen
Input Type
Select the type of input values, either [Bit] or [Word].
Output Type
Select the type of output values, either [Bit] or [Word].

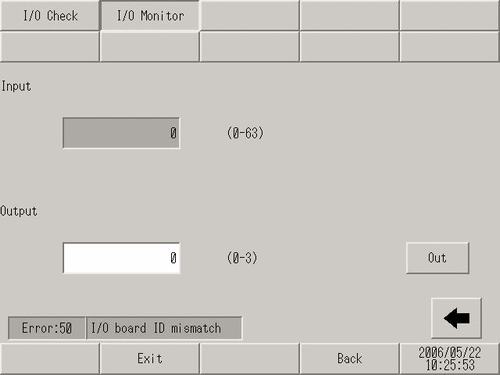

Input/Output display screen
Input
Displays the current input value of DIN with a value between 0 and 63.
Output
Touch this item to display numeric touch keys. Set the output value between 0 and 3.
Out
Outputs the value defined in the numeric input field.
