LT4000 Series

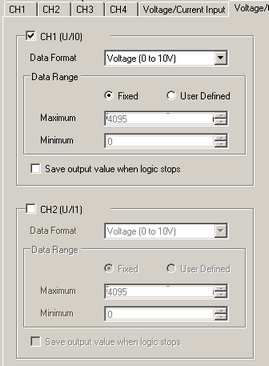

Select the channel you want to use, and specify detailed settings.
Data Type
Select a data type.
Fixed
The analog values in the voltage and current output settings appear in the range of -2048 to 2047 as shown below.
Voltage (-10 - 10V)
Current (0 - 20 mA)
User Defined (Maximum/Minimum)
The analog values in the voltage and current output settings appear within the range of [Maximum] and [Minimum] settings. The available values are as follows.
Maximum: minimum to 32767
Minimum: -32768 to maximum
