LT4000 Series

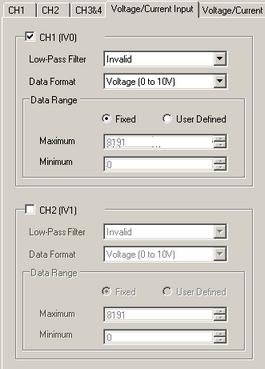

Select the channel you want to use, and specify detailed settings.
Low Pass Filter
Select the filter time for low pass filter.
Select from [Low], [Standard], [High]. If you are not using low pass filter, select [Invalid].
Data Type
Select a data type.
Fixed

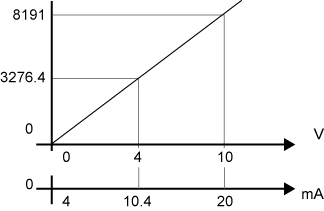

The analog values in the voltage and current input settings appear in the range of 0 to 8191 as shown below.
When the [Data Type] is [Voltage (-10 to 10V)], the range is from -4096 to 4095.
Display
User Defined (Maximum/Minimum)
The analog values in the voltage and current input settings appear within the range of [Maximum] and [Minimum] settings. The available values are as follows.
Maximum: minimum to 32767
Minimum: -32768 to maximum
