31.5.8.7 PWM Output Terminal Status - PWM Output

It shows the PWM output state in the output terminal. Available for LT3000 series and STC6000 series only.

#L_ExIOSpOut

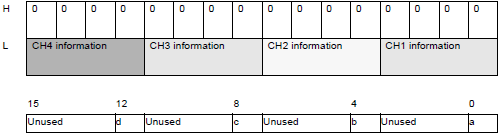

a: CH1 output state

[1]: Output, [0]: Not output

b: CH2 output state

[1]: Output, [0]: Not output

c: CH3 output state

[1]: Output, [0]: Not output

d: CH4 output state

[1]: Output, [0]: Not output
