The LN and LNP instructions are logarithmic instructions. The LN instruction calculates the natural logarithmic function of S1 and stores the result in D1. The result in D1 is output as a real value where e raised to the power of D1 equals S1.
Equation: D1 = logeS1
e is approximately 2.7182818284590 (real number).
The LN and LNP instructions always pass power. When using the LN and LNP instructions, an error will occur if the variables specified in operands S1 and D1 are not the same type. Designate the same variable type in all operands S1 and D1.
Refer to the following for specifying a constant.
When operand D1 is a float variable
When 0f (zero and lower case "f") is input, the following values are interpreted as float values.
When operand D1 is a real variable
When 0r (zero and lower case "r") is input, the following values are interpreted as real values.

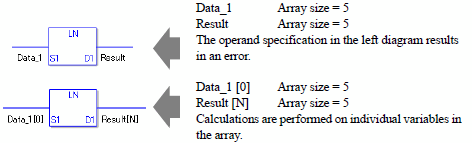

When calculating data in a specified array
Specify the array using Data [0] or Data [N] (N indicates an integer variable).
When operands S1 and D1 specify the entire array, an error will occur even if the specified variables are the same type.
