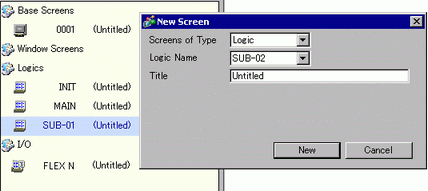

To create a subroutine screen, on the [Screen List Window] select [New Screen], or on the [Screen] menu click [New Screen].
The destinations you can specify for a subroutine instruction are SUB-01 to SUB-32.
The subroutine name is fixed and cannot be arbitrarily named.
Program Example
JSR
When the normally open instruction is turned ON to indicate a problem, the JSR instruction will be executed. The JSR instruction jumps to the subroutine screen "SUB-01" and executes the program. When "SUB-01" ends, the program will return to the rung after the JSR instruction and continue executing. After the first scan, if the normally open instruction is closed and power is ON, the JSR instruction will execute.
Place JSR instructions at the end of rungs.
JSRP
When the upward transition of a normally open instruction is detected the JSRP instruction executes. The JSRP instruction jumps to the subroutine screen "SUB-01" and executes the program. When "SUB-01" ends, the program will return to the rung after the JSRP instruction and continue executing. After the first scan, even if the normally open instruction is closed and power continues to flow, the JSRP instruction will not execute.
After one scan, the subroutine processing is not performed, and the processing in the next rung is performed.
Place JSRP instructions at the end of rungs.
