When the execution result is 0, #L_CalcZero turns on.
When the execution results in an error, the error code is stored in #L_CalcErrCode.
When checking the result using system variables, make sure the check takes place after the instruction has been executed. When checking the state after multiple instructions have been executed, system variables will store the result only of the last processed instruction.
Program Example

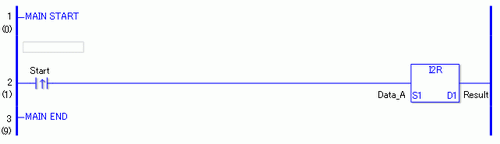

I2R
When the positive transition instruction turns ON, the I2R instruction will be executed. When the I2R instruction is executed, the result of the I2R conversion of Data_A is stored in D1.
When using a normally open instruction, the I2R instruction is always executed as long as the normally open instruction variable remains ON.
I2RP
The I2RP and I2R instructions have different ways of detecting when to execute. In the I2RP instruction, only the upward transition is detected and the I2RP instruction is executed even when using a normally open instruction. Even if the normally open instruction variable remains ON, the I2RP instruction is executed only once (for 1 scan).
