In the [Graph] tab, when [Display Method] = [Display Range], the [Alarm Settings] tab is hidden.

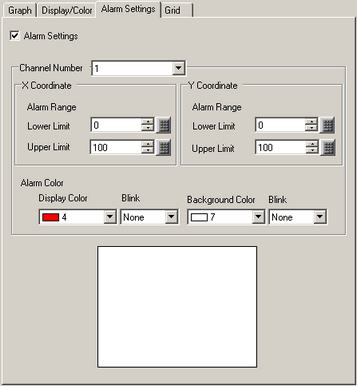

Alarm Settings
If set, the displayed color changes when the value moves outside of a specified range.
Channel Number
Select the Channel to configure.
Upper Limit/ Lower Limit
Set the Alarm Display range for X and Y coordinates from 0 to 100.
Alarm Color
Display Color
Select the Alarm Display color. The Alarm Display color appears as follows.
Background Color
Select the background color for displaying the alarm.
Blink
Select the blink and blink speed. You can choose different blink settings for the [Display Color] and [Background Color] in the alarm color.
Depending on your display unit's model and [Color] settings, you may not be able to set Blink (from the [Project] menu, point to [System Settings] and click [Display Unit]).
1.6 Supported Colors
Color Range Display Bar
Displays a sample for the alarm colors.
