42.2.1 Procedure - Converting Multiple Addresses

Converts the addresses set on the specified screens as a block.

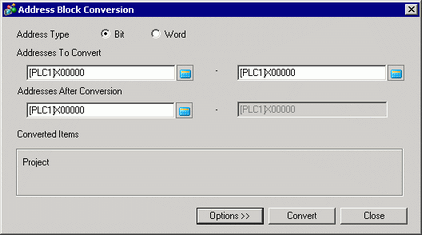

1. From the [Project (F)] menu, point to [Utility (T)] and select [Convert Addresses (A)]. The [Address Block Conversion] dialog box appears.


2. Click [Option] to display the setting items to be converted.


3. In the [Converted Items] area select [Screen] check box, then select the screen types and screen numbers.


4. Select the [Address Type] from [Bit] or [Word]. (For example, bit)

5. In the [Address to Convert] area, define the start address (for example, M10) and end address (for example, M17).



   • In the [Address to Convert] fields, you cannot define different registers for the start and end addresses.

6. In the [Address After Conversion] area, define the first address after conversion (for example, M200).

7. Click [Convert]. When the completion message appears, click [OK].
