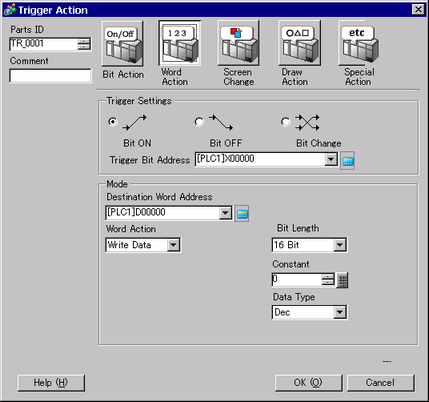

Operate the specified bit address according to the change of state of the trigger bit address.
Trigger Settings
Bit ON
Executes the action designated in [Mode] when the [Trigger Bit Address] changes from OFF to ON.
Bit OFF
Executes the action designated in [Mode] when the [Trigger Bit Address] changes from ON to OFF.
Bit Change
Executes the action designated in [Mode] when the [Trigger Bit Address] changes from ON to OFF or from OFF to ON.
Trigger Bit Address
Designate the bit address that triggers the action set in [Mode].
Mode
Destination Word Address
Designate the word address to run the action.
Word Action

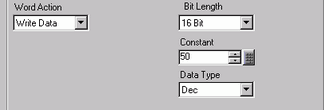

Write Data
Writes the constant in [Destination Word Address].
Bit Length
Set the data length for the Word address to 16 bit or 32 bit.
Constant
Designate the constant to write.
Data Type
Designate the constant's data type.

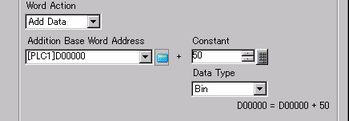

Add Data
Writes the value of the constant added to the [Addition Base Word Address] into the [Destination Word Address].
Addition Base Word Address
Designate the Word Address to be added to the constant.
Constant
Designate the constant to add.
Data Type
Designate the constant's data type.

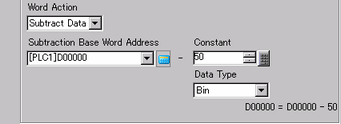

Subtract Data
Writes the value of the [Subtraction Base Word Address] minus the constant into the [Destination Word Address].
Subtraction Base Word Address
Designate the Word Address from which the constant is subtracted.
Constant
Designate the constant to subtract.
Data Type
Designate the constant's data type.
