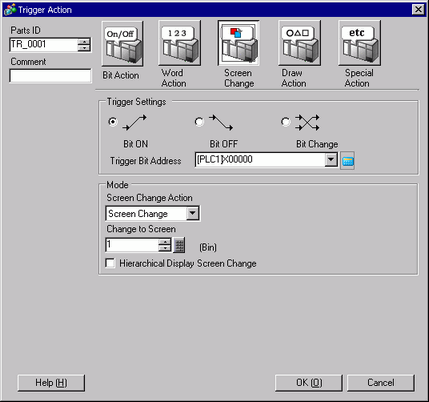

Screen Change is executed according to the change of state of the trigger bit address.
Trigger Settings
Bit ON
Executes the action designated in [Mode] when the [Trigger Bit Address] changes from OFF to ON.
Bit OFF
Executes the action designated in [Mode] when the [Trigger Bit Address] changes from ON to OFF.
Bit Change
Executes the action designated in [Mode] when the [Trigger Bit Address] changes from ON to OFF or from OFF to ON.
Trigger Bit Address
Designate the bit address that triggers the action set in [Mode].
Mode
Screen Change Action
Screen Change
The displayed screen changes to the specified screen.
Change to Screen
Specify the number of the Screen you want to display from 1 to 9999. This can only be set when [Screen Change Action] is set to [Screen Change].
Hierarchical Display Screen Change
You can set a level hierarchy to the Screen Change.
This can only be set when [Screen Change Action] is set to [Screen Change]. A maximum of 32 levels can be set.
Previous Screen
Returns to the previously displayed screen. For screens that are organized hierarchically, the screen one level up (the parent screen) will reappear.
