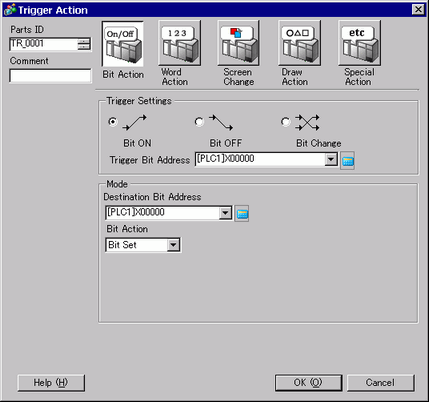

42.6.1.1 Bit Action

Operate the specified bit address according to the change of state of the trigger bit address.

Trigger Settings

Bit ON

Executes the action designated in [Mode] when the [Trigger Bit Address] changes from OFF to ON.

Bit OFF

Executes the action designated in [Mode] when the [Trigger Bit Address] changes from ON to OFF.

Bit Change

Executes the action designated in [Mode] when the [Trigger Bit Address] changes from ON to OFF or from OFF to ON.

Trigger Bit Address

Designate the bit address that triggers the action set in [Mode].

Mode

Destination Bit Address

Designate the bit address to run the action.

Bit Action

Bit Set

Turns ON the [Destination Bit Address] and maintains the ON state.

Bit Reset

Turns OFF the [Destination Bit Address] and maintains the OFF state.

Bit Invert

Changes the ON/OFF state of the [Destination Bit Address].

Comparison

When the comparison condition is satisfied, turns ON the [Destination Bit Address]. Compares the Word Address data and a constant.

Comparison Word Address

Define the Word Address to be compared.

Condition

Select the comparison condition.

Constant

Define the constant to be compared.

Data Type

Choose the constant's data type from [Dec], [BCD], or [Hex].
