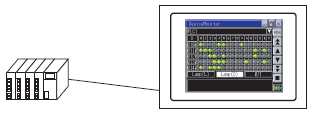

You can monitor specified device addresses of device/PLCs on the display unit screen. Or, change defined address values from the display unit screen. This is useful for debugging.
The screen for the monitor is provided, therefore you do not need to create the base screens.
42.5.1 Procedure - Monitoring the Value of Device Addresses (Device Monitor)
42.5.2 Operation - Monitoring the Value of Device Addresses (Device Monitor)
For information on the models which support device monitors, see the following.
1.5 Supported Features
Refer to the Pro-face website for the latest information on external devices you can use with the device monitor.
http://www.pro-face.com/trans/en/manual/1064.html
Devices/PLCs that can use Device Monitor
Digital Electronics Corporation of Japan
Hitachi Industrial Equipment Systems Co., Ltd.
Control Technology Corporation
Shenzhen Inovance technology Co.,Ltd.
Panasonic Industrial Devices SUNX Co., Ltd.
Hyundai Heavy Industries, Ltd.
Koyo Electronics Industries Co., Ltd.
Mitsubishi Heavy Industries, Ltd.
Mitsubishi Electric Corporation
Fuji Electric FA Components & Systems Co., Ltd.
|
Manufacturer |
Device/PLC Name |
|---|---|
|
A Series CPU Direct |
|
|
A Series Ethernet |
|
|
A Series Calculator Link |
|
|
Q series CPU Direct |
|
|
Q/QnA Series Ethernet |
|
|
Q/QnA Serial Communication |
|
|
QnA Series CPU Direct |
|
|
FREQROL Inverter |
|
|
Q series QnU CPU Ethernet |
|
|
FX Series Ethernet |
|
|
FX Series CPU Direct |
|
|
FX Series Computer Link |
|
|
QUTE Series CPU Direct |
|
|
iQ-R/F Ethernet (SLMP Client) |
|
|
C/CV Series HOST Link |
|
|
CS/CJ Series HOST Link |
|
|
CS/CJ Series Ethernet |
|
|
CS/CJ/NJ Series EtherNet/IP*2 |
|
|
Adjuster CompoWay/F |
|
|
PROFIBUS DP Slave |
|
|
SIMATIC S7 MPI Direct |
|
|
SIMATIC S7 3964(R)/RK512 |
|
|
SIMATIC S7 Ethernet |
|
|
SIMATIC S5 CPU Direct |
|
|
SIMATIC S5 3964(R) |
|
|
Ethernet Gateway MPI/PROFIBUS |
|
|
DF1*1 |
|
|
EtherNet/IP (Not including ControlLogix/CompactLogix Series Native)*1*2 |
|
|
DH-485*1 |
|
|
MEMOBUS SIO |
|
|
MEMOBUS Ethernet |
|
|
MP Series SIO (Extended) |
|
|
MP Ethernet/Mechatrolink |
|
|
Inverter/Servo SIO |
|
|
Fast Ethernet Server |
|
|
Personal Computer link SIO |
|
|
Personal Computer link Ethernet |
|
|
TOYOPUC CMP-LINK SIO |
|
|
TOYOPUC CMP-LINK Ethernet |
|
|
KV-700/1000/3000/5000 CPU Direct |
|
|
KV-700/1000/3000/5000 Ethernet |
|
|
KV Mode (HOST Link) SIO |
|
|
Visual KV Series CPU Direct |
|
|
KZ-10_80R/T Series CPU Direct |
|
|
MODBUS SIO Master |
|
|
MODBUS TCP Master |
|
|
Uni-Telway |
|
|
MODBUS Slave |
|
|
FP Series Computer Link SIO |
|
|
MEWTOCOL7-COM Ethernet |
|
|
MICREX-F series SIO |
|
|
MICREX-SX Series Ethernet |
|
|
Controller MODBUS SIO |
|
|
Inverter SIO |
|
|
H Series SIO*1 |
|
|
H Series Ethernet*1 |
|
|
Inverter MODBUS RTU |
|
|
Inverter ASCII SIO |
|
|
JW Series Computer Link SIO |
|
|
JW Series Computer Link Ethernet |
|
|
Controller MODBUS SIO |
|
|
Temperature controller |
|
|
Digital Controller SIO |
|
|
MODBUS TCP Master |
|
|
MODBUS SIO Master |
|
|
Series 90 Ethernet |
|
|
Series 90-30/70 SNP |
|
|
Series 90-30/70 SNP-X |
|
|
DIASYS Netmation MODBUS TCP |
|
|
MHI STEP3 Ethernet |
|
|
MASTER-K Series Cnet |
|
|
XGT Series FEnet |
|
|
XGT/XGB Series Cnet |
|
|
GLOFA Series Cnet |
|
|
XGK Series CPU Direct |
|
|
Saia S-Bus SIO |
|
|
Saia Ether-S-Bus |
|
|
UNISEQUE Series Ethernet |
|
|
Power Mate Series |
|
|
DeviceNet Slave |
|
|
S10V Series Ethernet |
|
|
S10 series SIO |
|
|
Indicating Controller SIO |
|
|
TC Series (TCmini/TC200) |
|
|
Computer Link SIO |
|
|
Computer Link Ethernet |
|
|
KOSTAC/DL Series CCM SIO |
|
|
KOSTAC/DL Series MODBUS TCP |
|
|
CC-Link Intelligent Device |
|
|
ROBO Cylinder MODBUS SIO |
|
|
X-SEL Controller |
|
|
FB Series SIO |
|
|
Controller MODBUS SIO |
|
|
General MODBUS SIO Master |
|
|
General MODBUS TCP Master |
|
|
Hi4 Robot |
|
|
Hi5 Robot |
|
|
Memory Link |
|
|
No Device/PLC (LT Series) |
|
|
General Ethernet |
|
|
General SIO |
|
|
Si/CutyAxis series SIO |
|
|
CANopen Slave |
|
|
CTC Binary Protocol |
|
|
In-Sight Vision Systems |
|
|
TwinCAT ADS/AMS |
|
|
Millenium 3 FBD |
|
|
PMAC Controller SIO |
|
|
Remote Ethernet |
|
|
Flexi Soft |
|
|
Robot Positioner TS Series |
|
|
b-CAP Protocol (TCP) |
|
|
CoDeSys V3 Ethernet |
|
|
CoDeSys Ethernet |
|
|
CoDeSys SIO |
|
|
MODBUS SIO Master |
|
|
MODBUS TCP Master |
|
|
IEC 60870-5-101 |
|
|
J1939 |
|
|
Train Real Time Data Protocol |
|
|
Modbus RTU Mode |
|
|
HMI Monitor Protocol |
|
|
Modbus TCP |
*1 When displaying out-of-range addresses using the Device Monitor's Block Monitor function, addresses within range are also displayed as "*". Do not define the out-of-range addresses.
*2 Device Monitor does not support variables.
A ladder monitor tool is available for reading the PLC ladder program for monitoring on the display unit screen. Please confirm whether your display model supports the ladder model features and purchase the ladder monitor tool for your PLC. Refer to the ladder monitor operation manual in the ladder monitor CD-ROM.
Tags in which the device monitor is supported
If the device/PLC is supported by the following Data Format, the device of the registered tag can be monitored.
BOOL, BYTE, WORD, DWORD, SINT, USINT, INT, UINT, DINT, UDINT, REAL, TIME, DATE, DT, TOD
Arrays can be monitored by specifying the elements. (Maximum six dimensions)
Structures can be monitored by specifying the members.
