42.5.2.3 Write to the Selected Address

From the display unit, you can write the value directly to a defined address. The following procedure describes an example of writing the value "100" to the Word Address D100.

1. Touch [Write to Optional Address] on the menu screen. The address input screen displays.



   • You can display the address input screen by touching an address on each monitor screen.

2. Select [Word] from Type, specify the address as "D100", and touch [ENT].

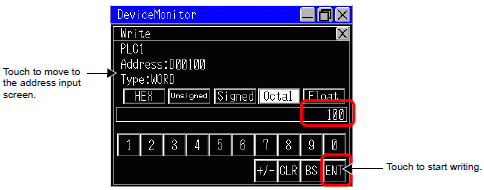

3. Select the display method for data, set the value "100" that you want to write, and touch [ENT].




   • When you write to a bit address, select [ON] or [OFF] and touch [ENT].

   • The following window will be displayed when writing to a tag.

   • For Word
