16.3 Display USB Keyboard Input

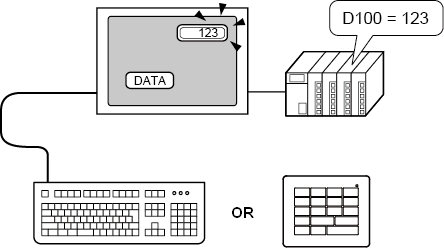

You can connect a USB Keyboard or EZ Numpad key to the display unit to input single-byte alphanumeric characters.

You can use a USB Keyboard only for inputting data to a Data Display part that allows barcode inputs. You cannot use the keyboard to enter passwords or other types of data.
When using WinGP, you can use a PS/2 Keyboard to enter data to a Data Display part.
You can input data from an EZ Numpad in the following cases. Otherwise, you cannot use it for data entry.
When [Allow Input] is selected for the data display.
When entering time in the Historical Mode of Historical Trend Graph.
Editing sampled data, Show CSV, and enhanced recipes
When analyzing alarm
When entering password

Key Name	Remarks
0 to 9	Numeric and character input
a to f	Numeric (HEX) and character input
g to z	Character Input
Tenkey: 0 to 9	Numeric and character input
Tenkey "*"	Character Input
Tenkey "+"	Character Input
Tenkey ","	Character Input
Tenkey "-"	Character Input
Tenkey "."	Numeric input (Float) and character input
Tenkey "/"	Character Input
:	Character Input
;	Character Input
,	Character Input
-	Character Input
.	Numeric input (Float) and character input
/	Character Input
@	Character Input
[	Character Input
\	Character Input
]	Character Input
^	Character Input
_	Character Input
Enter	Determine Input
BackSpace	Delete One Character to the Left
ESC	Cancel Input
Delete	Delete One Character
Space (Blank)	Character Input
￪	Cancel input. Move to the previous Data Display specified in the [Designated Input Order].
￬	Cancel input. Move to the next Data Display specified in the [Designated Input Order].
←	Move Cursor to the Left
→	Move Cursor to the Right

You cannot use keys not included in the above table, such as control keys ([Ctrl], [Shift], [Alt], and [Tab]), and function keys ([F1] to [F12]).

Key Name	Remarks
ESC	Cancel Input
BS/CLR	The state of the shift key (ON/OFF) changes the function. Shift OFF: Deletes the preceding character Shift ON: Deletes the character being entered
￪	Cancel input. Move to the previous Data Display specified in the [Designated Input Order].
￬	Cancel input. Move to the next Data Display specified in the [Designated Input Order].
→	Move Cursor to the Right
←	Move Cursor to the Left
ENT	Determine Input
Shift	Toggles between uppercase and lowercase. OFF: Upper case ON: Lower case

	Dec, Float	BCD, Bin, Oct	Hex	Text
1	1	1	1	1
2ABC	2	2	2, A, B, C	2, A, B, C
3DEF	3	3	3, D, E, F	3, D, E, F
4GHI	4	4	4	4, G, H, I
5JKL	5	5	5	5, J, K, L
6MNO	6	6	6	6, M, N, O
7PQRS	7	7	7	7, P, Q, R, S
8TUV	8	8	8	8, T, U, V
9WXYZ	9	9	9	9, W, X, Y, Z
0	0	0	0	0
+/-	+/- (Signs)	-	-	+/- (Signs)
.sp	. (Dot)	-	-	. (Dot), space
