37.18 Check Display Unit's Information by E-mail

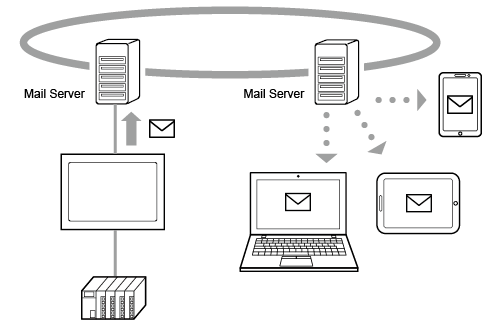

Summary

Setting up e-mail addresses of receivers and contents in advance enables you to send e-mail at a timing you want to.

You can also send e-mail in conjunction with the alarm and sampling functions.

37.18.2 Settings Menu - E-mail

Destination

Set up the e-mail addresses you want to send at one time as one group. You can register up to 255 receiver groups.

E-mail subject and body

The character code used for e-mail transmission is UTF-8 (Unicode).

Number of characters that can be set for [Subject] is up to 499 characters and [Body] is up to 4999 characters.

If you want to change the contents of the e-mail while the system is operating, specify the addresses or symbol variables indirectly by inserting them in [Subject] / [Body]. Number of addresses and symbol variables that can be set for [Subject] is up to 15 and [Body] is up to 255.

Setting example of indirect setting

The parts enclosed in parentheses [] are addresses and symbol variables. Enter "[[" or ,"]]" to indicate the bracket symbol "[" or "]".

Illustration of e-mail to be sent

File attachment

Maximum of 5 files can be attached to e-mail. Maximum size of each file is 10 KB.
