3.3.1 Procedure - Recording Video from the Display Unit

The following explains how to manually record video.

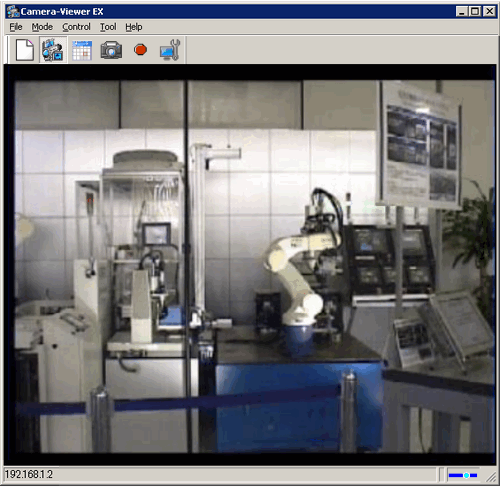

The following steps assume Camera-Viewer EX is already showing the video image from a connected display unit's video camera. For set up details, see the following.

3.2 Displaying Video from the Display Unit

  1. From the [Control] menu, select [Record], or click . When the confirmation dialog box appears, click [Yes].

    • Video recording will not start if you click [No].

  2. Define the storage location and file name of the Camera-Viewer EX setting file and click [Save].

  3. Recording will begin. Recorded video is saved as a video file on the computer's hard disk.
