GP-Pro EX New Functions

* There is a fee charged for upgrading to GP-Pro EX V3.0. For the version upgrade, please contact your local Pro-face distributor.

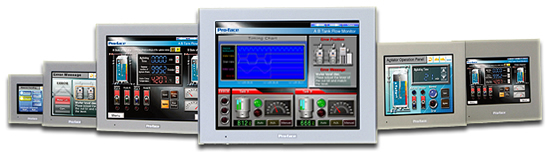

Supports the newest models GP4000 Series

The newest Graphic Operator Interface, "GP4000 Series", is now supported.
Expand the range of your applications with the wide variety of supported models.
GP4000 Series



Smooth alarm analysis

Supported models:
* Except GP-4*01TW, GP-4401WW, GP4000M Series, GP4100 Series

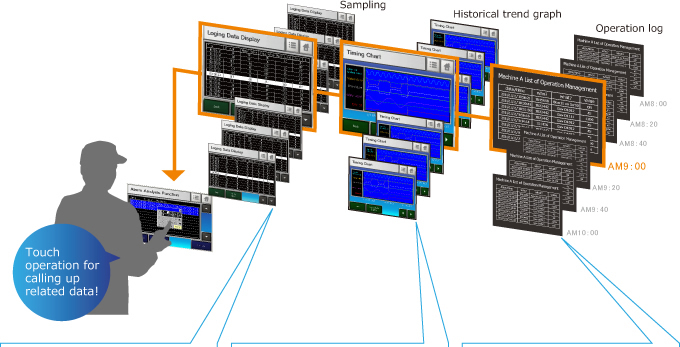

Production loss can be minimized with "Alarm Analysis" function.

When an error occurs, an operator can easily seek and check the condition on-site, just by touching the alarm message to call up various error-related data in chronological order.

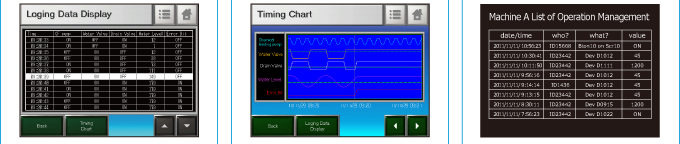

Storing various data
during production
Sampling Data
Displaying data in
an easy-to-see graph
Historical trend graph
Recording
the operator's operation
Operation Log
Temperature, voltage, and other desired address values can be stored in the GP. Data and times can be confirmed on the sampling display. The change in the collected data over time is displayed in an easy-to-understand form with a graph. The graph can be traced back to see the past data. Operations are saved to a log, so you can see who did what, and when. The log can also be used for a trend analysis of erroneous operation of operators.

Searching/ sorting alarm and sampling history

Supported models:
* Except GP-4*01TW, GP-4401WW, GP4000M Series, GP4100 Series



Easy ascending/descending sorting and conditional search using symbols such as =, > or < of Alarm Part and Sampling Display.

Search/Sort

Easier to change a recipe

Supported models:
* Except GP4000M Series, GP4100 Series

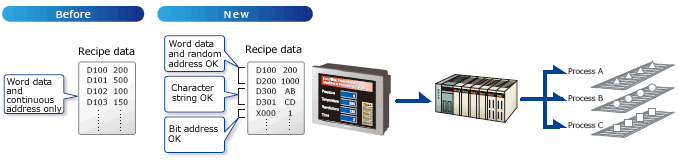

Line setting changes can be performed smoothly with "Enhanced Recipe function".

With the conventional recipe function, all recipe data must be stored at continuous addresses.
The new recipe function allows writing random addresses and multiple data formats as a recipe.

Ehanced Recipe function

Data at discontinuous addresses or in different formats can be processed all at once.
(* GP-4*01TW and GP-4401WW don't support the sort/ search feature.)

Sampling in different device formats

Supported models:
* Except GP4000M Series, GP4100 Series



Text, bits, and variables that could only be set for devices as numeric values can now be mixed. Connected devices + internal addresses can also be set.

Sampling

Alarm History Banner Display

Supported models:
* Except GP4000M Series



Long alarm messages are automatically scrolled and displayed so their details can be checked.

Alarm History Banner

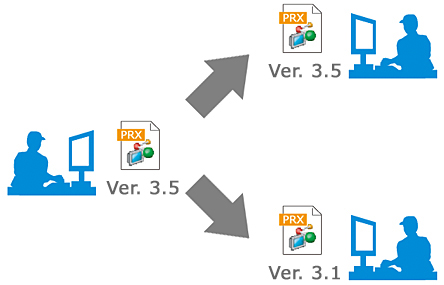

Project Comparison Tool

Supported models:



Compares two projects (*.PRX) on a PC and displays the differences.

Project comparison

Supports Siemens AG's tag import function

Supported models:
* Except GP4000M Series, GP4100 Series



Reduce screen development time by communicating with Siemens AG PLCs.

<Supported Data Type>
BOOL, BYTE, WORD, DWORD, SINT*1, USINT*1, INT, UINT*1, DINT, UDINT*1, REAL*2, STRING, ARRAY*3,
User-defined Structure, TIME, DATE, TOD, DT*4,
S5 TIME*5

Tag import
  1. Can be used on GP-Pro EX, but not supported by the tag import function.
  2. Float type (range: -9.9e16 to 9.9e16) data can be imported.
  3. Up to 6 dimension data can be imported.
  4. Imported as 64-bit data.
  5. Imported as WORD type data.

User Original Start Screen

Supported models:



Display a registered start screen (image) from when the power is turned on until when the initial base screen is displayed.

電源投入時
イメージ表示
初期画面表示
Power on

Display the image

Display the initial screen



Windows® 7 64-bit

Supported models:
* Only supports PS4000 Series Core2 Duo models.



GP-Pro EX can be used in a wide range of PC operating environments such as Windows® 7, Windows® XP and Windows Vista®.

>>Details for Windows® 7 support

Edition
64/32bit
Ultimate
Enterprise
Professional
Home Premium
Home Basic

Much easier-to-understand icon design

Supported models:



The icon design of GP-Pro EX is easier to understand.
You can quickly find what you want from many icons and improve work efficiency.

New icon design

LT3000 series is supported by GP-Viewer EX

Supported models:
* Except GP-4201TW, GP4000M Series, GP4100 Series
* For the GP/LT3000 Series, only the models equipped with Ethernet I/F are supported.
* For WinGP, PS/PL3000 Series are supported.



View and operate on-site GP display on a remote PC via Ethernet to monitor on-site status.
>>For details

* A separate license must be purchased.



GP-Viewer EX

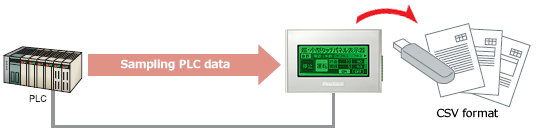

Output of sampling data in a CSV format to GP4100 series

Supported models:



The data (sampling data) sampled by sampling feature is saved in CSV format on an USB storage device.
This improves the efficiency of preparing daily and monthly reports.

Save sampling data onto an USB storage device
