* The models of PS4000 Series are the same as global codes.
Specification of PS-4700 (0 Slot) - Aluminum Bezel Model
(Specification is inserted at this area. Don't delete this text.)
＜Note about GL standards＞
GL requires to mount a noise filter for marine certification. It confines the next configuration "CPU type: Atom N270, Storage: CF or SDD".

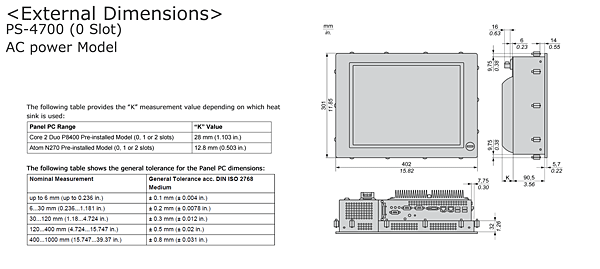

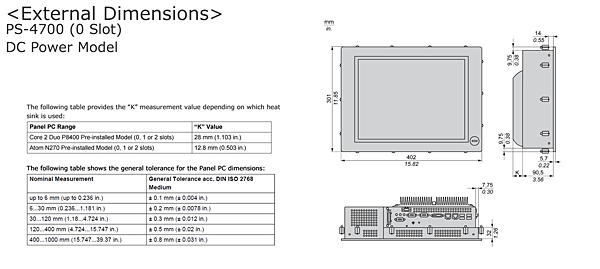

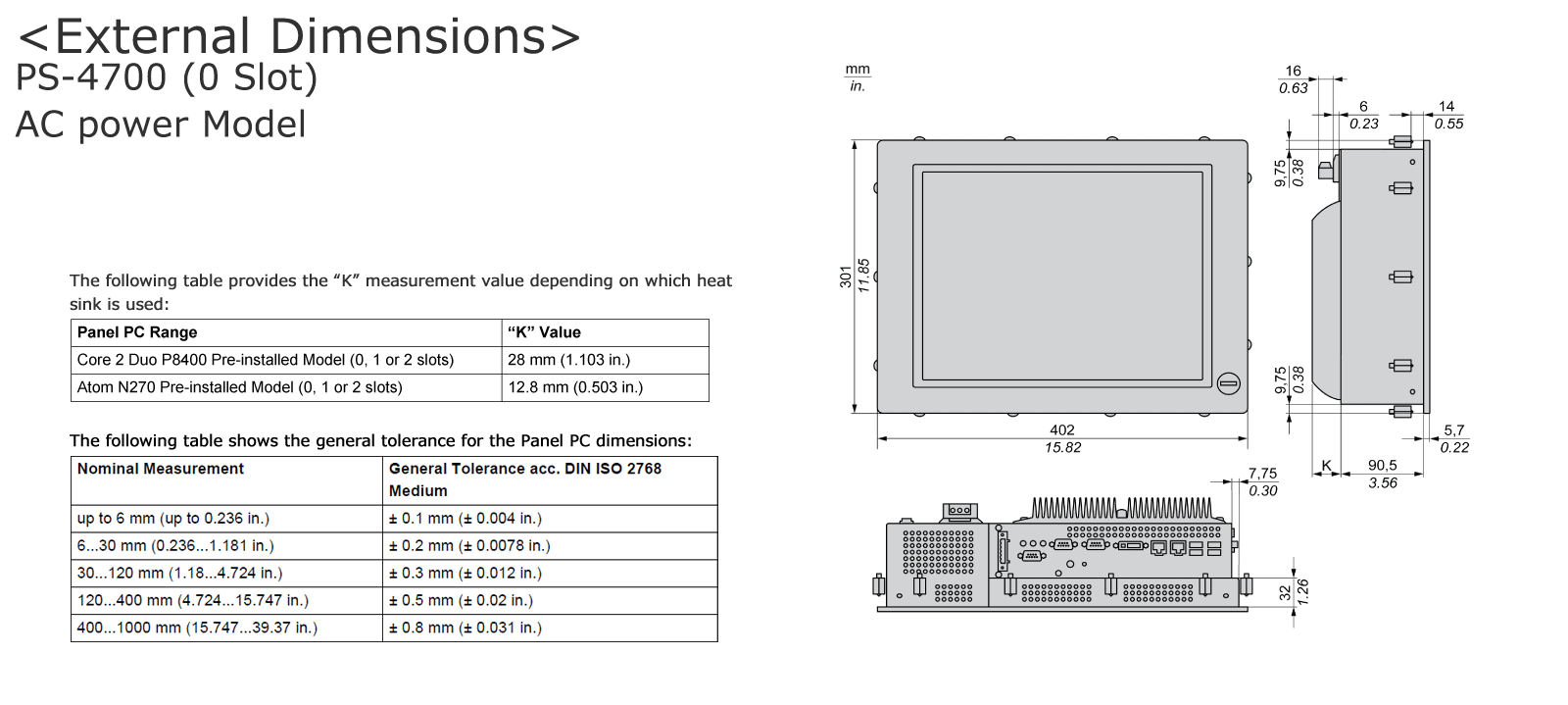

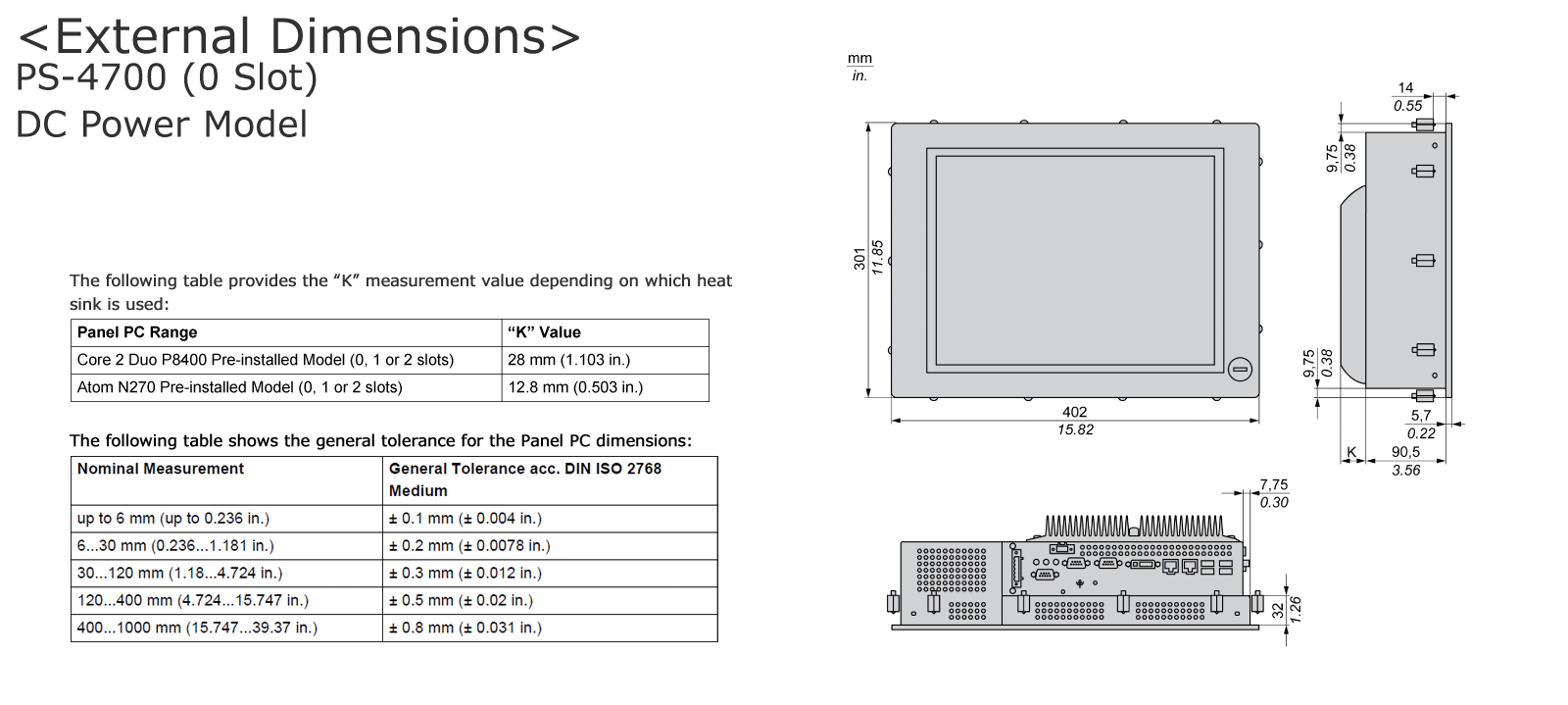

External Dimensions

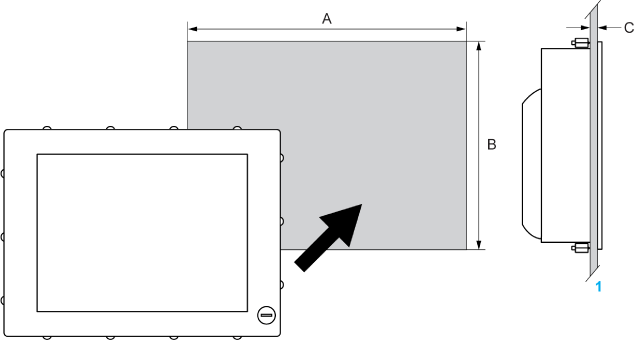

Panel Cut-out
1: Installation panel
| A | B | C |
|---|---|---|
| 383.5 + 1/– 0 mm (15.10 + 0.04/– 0 in.) |
282.5 + 1/– 0 mm (11.12 + 0.04/– 0 in.) |
1.6...10 mm (0.06...0.39 in.) |
