 Robot Controller Connection

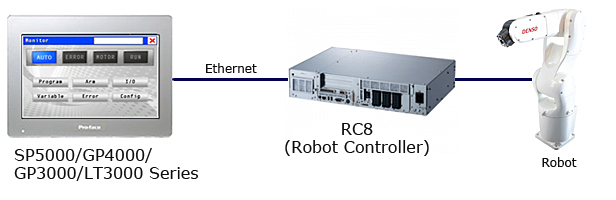

You can connect SP5000/GP4000/GP3000/LT3000 series to a robot-controller “RC8” made by DENSO WAVE INCORPORATED and display a state of a robot. Without the teaching pendant of the robot, you can see the current state of the robot to some degree.

Supported Model
  * Status Monitor of the Controller
  * Confirm the List View and Running Status of the program, which are registered in the Controller.
  * The line that actually runs can be displayed on the program monitor screen.
  * Input / Output Monitor (Forced Set /Reset function by conditions)
  * Monitor current position and check the setting value of the Robot.
  * Confirm and register the variables.
  * Display error code and the details.
  * Monitor a system version of the controller.
  * Perform the JOG operation.

* GP-Pro EX Ver. 3.50.000 or later is required. For SP5000 Series, GP-Pro EX Ver. 4.03.000 or later is required.

We do not guarantee that the operation of this sample will be uninterrupted or error-free.

Download the sample program file and detailed description (PDF file).

Download this sample application!
