 High-Accuracy Position Sensors Connection (MECHATROLINK-Ⅲ Communication Instruction Type)

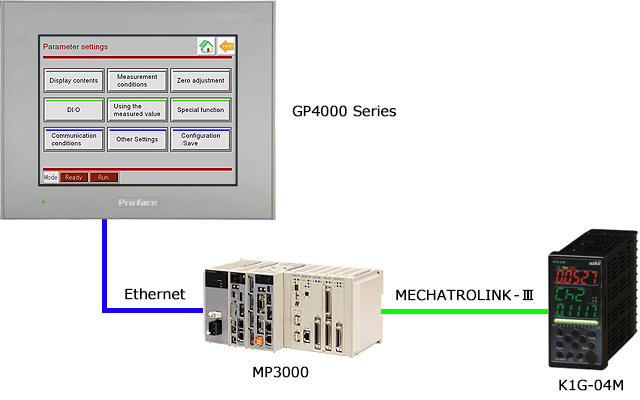

You can connect High-Accuracy Position Sensors K1G Series manufactured by Azbil Corporation (Former: Yamatake Corporation) with GP4000 Series, and K1G Series can be used as a setting/management support tool.

Supported Model
Azbil Corporation High-Accuracy Position Sensors K1G Series
- Measurement data screens and status monitoring screens which display the real time status.
- Light receiving adjustment screens, zero adjustment screens, light receiving profile screens in which adjustment and confirmation can be made.
- Trend monitor screens which record and display a measurement value change amount in at least 1-second cycle.
- Parameter setting screens in which various functions are set.
- Screens in which settings can be saved in/read from the USB memory and non-volatile memory area in the GP unit.
- Setting screens for each application in which a setting guidance for each usage is performed.
- Product exchange procedure screens to be used for supporting exchange operations for sensors and controller sections.
- CSV Export function which outputs the settings and recorded data to the USB memory in the CSV format.

* GP4000 Series support this sample.
* YASKAWA Electric Corporation MP Ethernet/MECHATROLINK Driver Ver. 1.19.08 is required for this sample.
* GP-Pro EX Ver. 4.03.200 or later is required.
* We do not guarantee that the operation of this sample will be interrupted or error-free.

Download the sample program file and detailed description (PDF file).
