3.The maximum file size of Print Setting |
|
The volume of the setup file for Print Setting is up to about 58KB. This setup file includes data such as a print header, a print footer, print data and so on. The volume might exceed the limit depending on the contents of the settings. The maximum number of characters in one line is 160. For some patterns of Print Setting, the followings show the maximum size as reference. |
 Pattern 1
[Conditions]
-No settings for a print header part and a print footer elements
-Date and values only for column settings
-Set character strings in the second line and enter each by single-byte 8 characters.
-The number of aggregate-part lines is four (total, average, max., min.)
|
 |
The max. number of value columns and the max. number of data display lines are as follows; |
| Number of value columns |
Number of data display lines |
Remarks |
| 18 |
2044 |
When the number of value columns is the max. 18, (since the max. number of characters in one line is 160, if 8 single-byte characters are entered in each line, the max. is 18 columns.) |
| 16 |
2048 |
When the number of data display lines is the max. 2048 |
|
|
In the case of the pattern above, if the number of words logged is under 18, all logged data can be displayed.
(1.Maximum size of backup SRAM) |
Pattern 2
[Conditions]
- No settings for a print header part and a print footer part
- Date and values only for column settings, and a line between the gap of each
-Set character strings in the second line and enter each by single-byte 8 characters.
-The number of aggregate-part lines is four (total, average, max., min.)
|
 |
The max. number of value columns and the max. number of data display lines are as follows; |
| Number of value columns |
Number of data display lines |
Remarks |
| 15 |
291 |
When the number of value columns is the max. 18, (since the max. number of characters in one line is 160, if single-byte 8 characters are entered in each line, the max. is 15 columns. A line is counted as one character.) |
| 8 |
472 |
When the number of value columns is 8, |
| 4 |
698 |
When the number of value columns is 4, |
|
|
If lines are placed between columns, the setup file size gets very big. The number of lines that can be printed gets very small compared to Pattern 1, but it depends of other settings.
(3.The maximum file size of Print Setting1) |

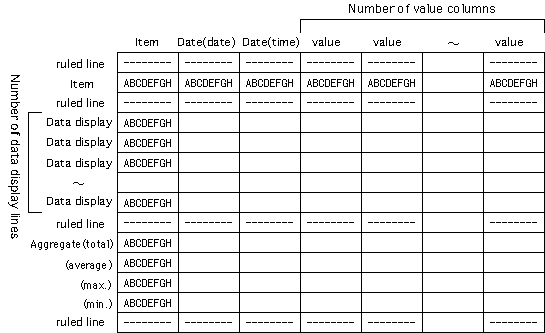

Pattern 3
[Conditions]
No settings for a print header part and a print footer part
Set character strings in the first column and enter each single-byte 8 in characters.
Set character strings in the second line and enter each single-byte 8 in characters.
The number of aggregate-part lines is four (total, average, max., min.)
|
 |
The max. number of value columns and the max. number of data display lines are as follows; |
| Number of value columns |
Number of data display lines |
Remarks |
| 17 |
282 |
When the number of value columns is the max. 18, (since the max. number of characters in one line is 160, if single-byte 8 characters are entered in each line, the max. is 17 columns.) |
| 16 |
295 |
When the number of value columns is 16, |
| 8 |
482 |
When the number of value columns is 8, |
| 4 |
683 |
When the number of value columns is 4, |
|
|
In the case of setting character strings in columns and printing characters all in the columns, the setup file size gets very big. The number of lines that can be printed gets very small compared to Pattern 1. It depends on the length of the characters printed in the character strings or other settings(3.The maximum file size of Print Setting) |
Pattern 4
[Conditions]
No settings for a print header part and a print footer part
Set character strings in the first column and enter each in 8 single-byte characters.
Set a line between columns
Set character strings in the second line and enter each in 8 single-byte characters.
The number of aggregate-part lines is four (total, average, max., min.)
|
 |
The max. number of value columns and the max. number of data display lines are as follows; |
| Number of value columns |
Number of data display lines |
Remarks |
| 14 |
293 |
When the number of value columns is the max. 18, (since the max. number of characters in one line is 160, if single-byte 8 characters are entered in each line, the max. is 17 columns. A line is counted as one character.) |
| 8 |
434 |
When the number of value columns is 8, |
| 4 |
621 |
When the number of value columns is 4, |
|
|
If setting character strings in columns and setting a line between columns, the setup file size will get very big. The number of lines that can be printed gets very small compared to Pattern 1. It depends on the length of the characters printed in the character strings or other settings(3.The maximum file size of Print Setting) |
|
|
 1.Max. size of backup SRAM/2.The maximum size of display settings |
