 FAQ

 How can I input/output the image?

On GP, you can display up to 4 screens from 5 inputs of 4 external video camera (VIDEO) inputs and 1 PC image (RGB) input.

There is also 1 GP image (RGB) output, and it is possible to display the GP screen on an external monitor.

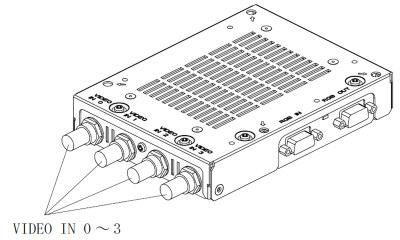

Video Cable
Connecting BNC Connector to VIDEO IN 0 - 3

Input Specification: NTSC/PAL Type
No. of Interface: 4
Connector: 75 Ohm BNC (Receptacle)
Recommended Connector: BNC-P-3DV-SA <Hirose Electric Co., Ltd.>
Recommended Cable: 3C-2V Coaxial Cable

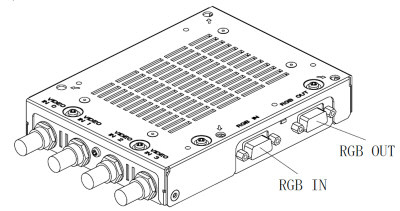

RGB Cable
Connecting Dsub15-Pin Connector to RGB OUT or RGB IN.

Input Specification: VGA/SVGA
Output Specification: 640 x 480 Dots (AGP-3500T/3550T)
800 x 600 Dots (AGP-3600T/3650T)
No. of Interface: 1/ Each
Connector: Dsub15-Pin (Receptacle)
Recommended Connector: XM4K-1543 <Omron Corporation>
Recommended Cable: XM2S-0913 <Omron Corporation>
Recommended RGB Cable:
(With Both-End Connector)
FP-CV00(2.5m) <Digital Electronics Corporation>
FP-CV01(5.0m) <Digital Electronics Corporation>

Important
* Please make sure that RGB Output Cable is shorter than 5m.
