The touch panel's external view and dimensions with a VM unit attached on it vary depending on the series of the touch panel. See the followings for the details.
|
|
|

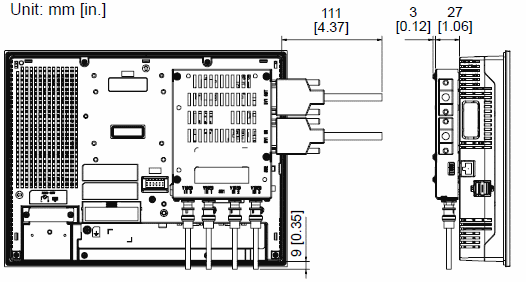

GP-3500 Series |
|
|
|
|
|
| IMPORTANT |
| - |
All the above values are designed in case of cable bending. The dimensions given here are representative values depending on the type of connection cable used. Therefore, they are all intended for reference only. |
| - |
The Expansion Unit Interface 1 and the VM Unit Interface cannot be used simultaneously with the GP-3500 series. |
|
|
|
|

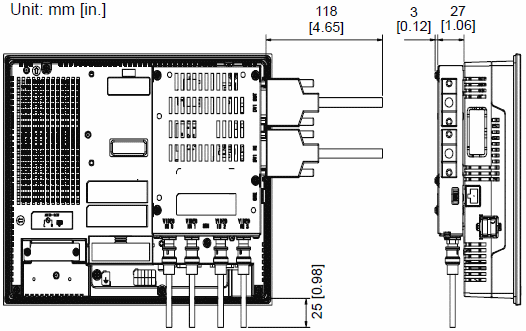

GP-3600 Series
|
|
|
|
|
|
| IMPORTANT |
| - |
All the above values are designed in case of cable bending. The dimensions given here are representative values depending on the type of connection cable used. Therefore, they are all intended for reference only. |
|
|
|
|
GP-3700 Series
|
|
|
|
|
|
| IMPORTANT |
| - |
All the above values are designed in case of cable bending. The dimensions given here are representative values depending on the type of connection cable used. Therefore, they are all intended for reference only. |
|
|
|
