Compatibility
Compatibility of K Tag

If K tags are used on the GP2000/77R/70 series, the input order may be changed and converted depending on the contents set with GP-PRO/PB3.

Case that the input order of K tags may be changed
Condition 1.
When replacing multiple K tags
Condition 2.
When setting the same trigger bit addresses for all
Condition 3.
When setting the same tag names for all

When all of the above conditions meet, the input order may be changed and converted.
Description

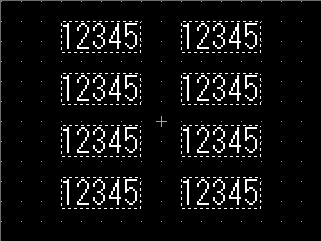

Condition 1. When replacing multiple K tags

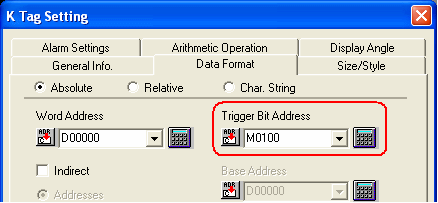

Condition 2. When setting the same trigger bit addresses for all

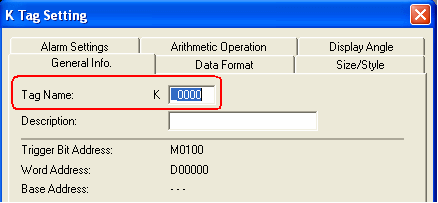

Condition 3. When setting the same tag names for all






K tags will be converted into [Data Display] for the GP3000 series.
If you input data when the trigger bit of the data display is ON, the input order of the data display is the order in which you have placed K tags with GP-PPR/PB3 before conversion.

In case that the input order of the data display of the GP3000 series is different from that of the GP2000/77R/70 series after conversion, set the [Input Order] feature of the GP-Pro EX data display to input the data in the order as you like.
