Otasuke Pro! > Compatibility Information > GP3000

		ST-402	GP-3302B
Display Type		Monochrome LCD	Monochrome Blue Mode LCD
Brightness Control		2 levels in monochrome 8 levels in monochrome	16 levels
Display Resolution		QVGA (320 x 240)	QVGA (320 x 240)
Panel Cutout (mm)		118.5(W) x 92.5(H)	156.0 (W) x 123.5(H)
Dimensions		103(W) x 104(H) x 41(D)	167(W) x 135(H) x 59.5(D)
Dimensions		Matrix Type	Resistive Film (Analog) Type
Serial I/F	COM	D-SUB9P (female) RS485 (MPI)	D-SUB9P (male) RS-232C
Expansion Serial I/F	COM	D-SUB9P (male) RS422	D-SUB9P (male) RS-422
Memory	Application	640KB	6MB
Memory	SRAM	96KB	320KB
Ethernet I/F		10BASE-T	-
USB I/F		-	USB TYPE-A x1

* Please read.

1) Panel Cutout Dimensions

Panel cutout dimensions of GP-3302B are 156.0 (W) x 123.5 (H) mm. Ones of ST-402, which are 118.5 (W) x 92.5 (H), are different from GP-3302B.

2) Convert-To Model when Conversion

If you convert data for ST-402 by the project converter, they will be converted to data for GP-3200T. Please note that you need to change the setting for the model to GP-3302B after conversion.

3) Touch Panel Specifications

"Analog Type" is adopted for GP-3302B.
With "Analog Type", touch input is not recognized even if you touch two points at the same time. Therefore, please do not touch two points at the same time.
If you use two point touch input with ST-402, we recommend you to change to one point touch input in the application by using the delay feature of the switch functions.

4) Transfer Screen Data

With GP-3302B, USB or Ethernet is used to transfer the screen data. Please use a transfer cable (model: CA3-USBCB-01) for GP3000 Series. Please note that commercial USB cables cannot be used.
Although the tool port is used to transfer the screen data with ST-402, the model of the transfer cable (*1) for ST is different from that of GP-3302B.

*1: ST-402 Transfer cable model: GPW-CB02, GPW-CB03, GP430-CU02-M, etc....

5) Power Consumption

The power consumption of GP-3302B and that of ST-402 are different. Please confirm the power supply capacity that is supplied to the main body

6) Function Switch

GP-3302B does not have any function switches. Therefore, the function switches that have been set with ST-402 cannot be converted.

7) COM Port of Serial Interface

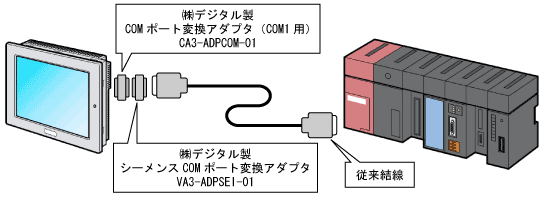

COM1/COM2 ports for GP-3302B are D-Sub 9 pins male connecter. While, COM1 port for ST-402 is D-Sub 9 pins female connecter and COM2 port is D-Sub 9 pins male connecter. The pin array and the shape of male/female connector are different from ones of GP-3302B. Therefore, please connect the connection cable to PLC with attention by following configuration.
