Hardware Comparison with Recommended Optional Products

Video Input
	GP2000-VM41	GP3000-VM01
Input Interface	75Ω BNC (Receptacle)	75Ω BNC (Receptacle)
Input Signal System	NTSC/PAL	NTSC/PAL *1
No. of Input Channels	4 channels	4 channels
Display Colors (Colors)	32768 colors	262144 colors *2
Display Colors (Color levels)	64 levels	64 levels
75Ω Termination ON/OFF Switch	-	○ *3
Display Size	100%, 50%, 25%	100%, 50%, 25%
PC Input
Input Interface	D-Sub 15-pin (female)	DVI-I (female) *4 Replecement Required
Input Signal System	Analog RGB	Analog or Digital RGB
No. of Input Channels	1channel	1channel
Resolution	VGA, SVGA	VGA, SVGA, XGA *5
Input Display Colors	32768 colors	262144 colors *2
Display Size	100%, 50%, 25%	100%, 50%, 25%
PC Output
Output Interface	D-Sub 15-pin (female)	DVI-I (female) *4 Replecement Required
Output Signal System	Analog RGB	Analog or Digital RGB
No. of Output Channels	1 channel	1 channel
Resolution	VGA,SVGA	VGA, SVGA, XGA *5
Output Display Colors (Maximum)	65536 colors	262144 colors *2
Software
Screen Creation Software	GP-Pro/PBⅢ for Windows Ver.5.05 or above GP-Pro EX Ver.1.10 or above Pro EX for BA Ver.2.10 or above	GP-Pro EX Ver.2.21 or above *6) Replecement Required
No. of Simultaneous Display Video Screens	1 screen (Standard mode) 4 screens (Extend mode)	4 screens *7
System Settings	Video Settings (Standard mode, Extend mode)	Video Module/DVI Unit settings(Extend mode only)*7
Base Screen Settings	V Tag, v Tag	Video Module/DVI unit display (Small v_tag feature only)*7
Video Screen Settings	Video Screen	Video Module/DVI Unit settings *7
Emulate Touch Output Feature	-	○ *8
Other
GP2000 Series	Compatible	Incompatible
GP3000 Series ABS3000 Series	Compatible/Incompatible (GP3700 series is incompatible)	Compatible*9
Length of Input/Output cable	Up to 5m	Up to 10m *10
RoHS Compliant	Not compliant	Compliant

* Read carefully.

1) Signal System

NTSC and PAL systems cannot be applied at the same time.

2) Screen Processing Capability

The GP3000-VM01 unit's colors that can be displayed at one time has been increased to approx. 260000 colors. Moreover, the GP3000-VM01 unit has better screen processing capability, and it delivers more vivid and smoother video if you compare the same video input signal between the VM2000 and VM3000 units.

3) Termination Resistance

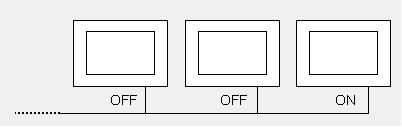

The GP3000-VM01 unit allows you to add 75 Ω of termination resistance to each VIDEO IN (video input connector). In case of daisy chain connection, you can prevent from signal deteriorating by switching on the termination connector.

4) Input Interface

The PC input/output interfaces on the GP3000-VM01 unit are DVI-I female.
Those on the GP2000-VM41 unit are D-Sub 15-pin female.
The pin out and the shape of the connector are different, and the RGB cable, FP-CV00, FP-CV01, etc. are not available on the GP3000-VM01 unit. Please prepare a cable (CA7-CBLCVRGB-01) to convert from DVI to RGB. Or for the digital video input/output, prepare a DVI cable (FP-DV01-50 or FP-DV01-100).

5) Input/Output Resolution

The GP3000-VM01 unit supports XGA (1024 x 768) for the resolution of PC input/output.
(To output at a resolution of XGA, GP-3750T is required.)

6) Screen Creation Software

The GP3000-VM01 unit is compatible with the screen creation software GP-Pro EX Ver. 2.21 or above.
If the version of GP-Pro EX that you currenly use is higher than 2.0 and lower than 2.5, you can upgrade the version from the following website for free.

GP-Pro EX Ver.2.5 Upgrade Service

For the information on the GP-Pro EX upgrade from the version lower than 2.0, please contact the nearest Pro-face office.

Pro-face offices

7) Video Window Control Mode

The GP3000-VM01 unit supports only the settings relating with the Expand mode, which is one of the video window control modes (GP-570VM Standard mode and Expand mode) that GP2000-VM41 has.
If you have applied the GP-570VM Standard mode with a combination of the GP2000/77R/70 series and the GP2000-VM41 unit, the Standard mode and the related settings such as V Tag will be deleted.
For the details, refer to the following website.

Compatibility of VM Unit Settings

8) Emulate Touch Output Feature

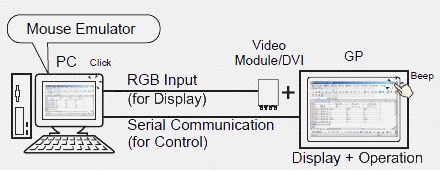

This feature allows you to output touch coordinates to a PC using serial communication. To use the PC mouse cursor to emulate touches on the GP unit, install the Mouse Emulation software on the PC so it can receive touch information sent from the GP unit.

Note

For the touch-output, prepare the followings.

Mouse Emulation software manufactured by Digital Electronics Corporation
DVI-I cable or DVI-RGB conversion cable
Serial cable (crossing, commercially available)

9) Large-Sized Touch Panel Application

The GP3000-VM01 unit is applicable to a 15-inch touch panel in the GP-3700 series so that you can make full use of video input/output of XGA.

10) Length of Input/Output Cable

For connection of the GP3000-VM01 unit with the PL-3000B or PS2000B unit, the DVI-D cable FP-DV01-100 (10m) can be used. In an environment other than above, we recommend you to set up units with FP-DV01-50 (5m).
For the details, refer to the following manual.

Cables for GP3000-VM01
