Available when using the SP5000 series.
Changing this setting changes the clock on the display unit. Changing the clock affects features that interact with the display unit clock. The following lists features affected by changes in the clock.
5.6.2 Restrictions for Adjusting the Clock

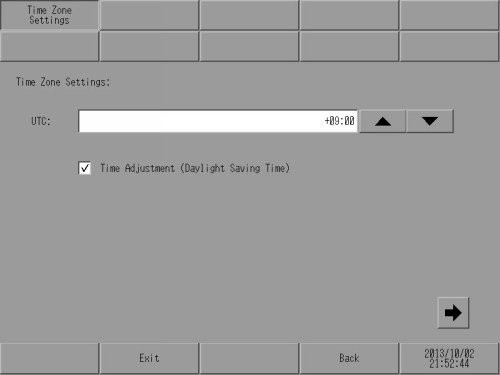

UTC
Set up the standard time on the display unit as an offset from the Coodinated Universal Time (UTC) for the region where the unit is installed.
Time Adjustment (Daylight Saving Time)
Defines whether or not your system uses daylight saving time. If used, the clock on the display unit changes at the beginning and end of daylight saving time.
If you use the Common Settings [Clock Update Settings] to change clock data from a connected device, and Daylight Saving Time is enabled, the display unit clock may temporarily not match the clock on the connected device.

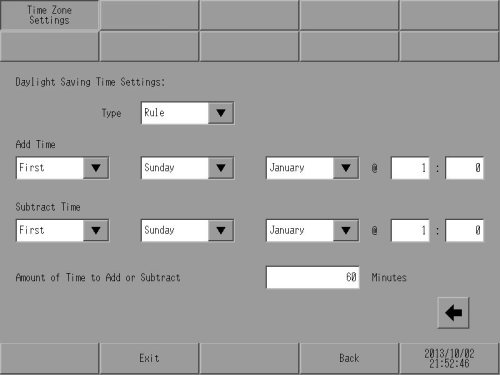

Type
Use the [Rule] and [Date] properties to define how you want to select the daylight saving time period.
Rule
Set up the rule for how long daylight saving time is in your region.
Date
Set the start and end date for daylight saving time in the year.
Add Time / Subtract Time
Set the start date/time and end date/time for daylight saving time.
If[Rule] is selected in [Type], define the start and end month, week, day, and time, as required by the region.
If[Date] is selected in [Type], define the start and end month, date, and time.
Amount of Time to Add or Subtract
Set the amount of time to add or subtract at either the start or end of daylight saving time, from -120 to +120 minutes.
