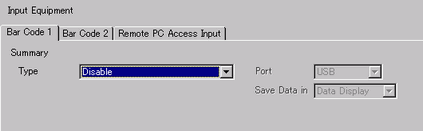

Type
Select the barcode type to connect.
Not in use
Select when a barcode/two-dimensional code reader is not in use.
Select when using a barcode reader.Bar Code Reader
two-dimensional code reader
Select when using a two-dimensional code reader.
16.6.1.2 Two-dimensional Code Reader
Port
Select the port to connect: [COM1], [USB], or [USB/SIO(RS232C)].
16.6.1.2 Two-dimensional Code Reader
Save Data in
Select the code data storage location as either [Data Display] or [Internal Device].
