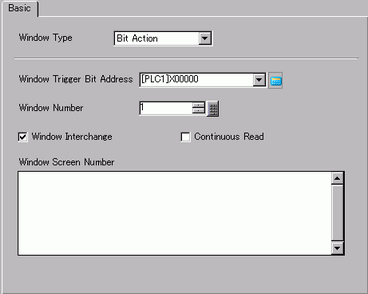

Window Trigger Bit Address
Specify the bit address to control the window display.
This can be set to either a PLC address or a display unit's internal device address (System Data Area).
When many parts are running from a window, you can sometimes speed up screen display by using a display unit's internal device addresses.
Window Number
Specify the number of the Window Screen you want to display from 1 to 2000.
Window Interchange
Select this check box to allow the selected window to move on top of another window.
Continuous Read
Select to continually read data from a part regardless of the Window displayed. This does not apply to touch input parts.
When a window displays, the part's Data Display speed is increased.
When the Window is not displayed, part data specified on the window and screen is read. All the other screen display speeds decrease.
Up to three Windows with [Continuous Read] can be placed on a single Base screen. When using Global Windows, you can place up to two windows on a Base screen. Other Windows where [Continuous Read] is not set cannot be displayed when three Windows are placed.
Windows with the [Continuous Read] option set are read before Windows without this option are read.
Any scripts set on a Window execute if the script condition is satisfied, even if the Window is not displayed. If you do want to execute the script, make sure the [Continuous Read] check box is cleared.
Window Screen Number
Display a list of the Windows. The [Window Screen Number] will be automatically input by selecting the screen.
