27.9.3 Common (Movie) Settings

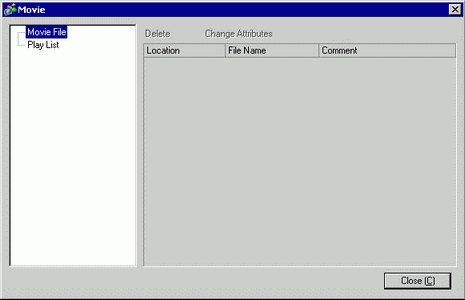

Movie File

Display a list of movie files saved in the MOVIE folder in the specified "Destination Folder".

Delete

Delete the selected file from the list.

Change Attribute

Change the file name or file comment selected from the list.

Play List

Display the existing playlist files.

New Project File

Create a new playlist file.

  • Up to 32 playlist files can be registered.

Delete

Delete the selected playlist file from the list.

Change Attribute

Change the file name of a playlist file selected from the list.

(File Name)

Display the contents of the created playlist file.

Add

Specify a movie file or folder to add to the playlist.

When the folder is specified, movie files within the folder are played in the order in which the files were created on the CF card, USB storage or the FTP server.

Type

Play CF File

Add the files saved in the MOVIE folder in the CF card to the playlist. When entering "\MC" into "File Name", automatically "\MOVIE" and "\" are combined and become "\MOVIE\MC\".

Play CF Folder

Add the folder saved in the MOVIE folder in the CF card to the playlist. When entering "\MC" into "Folder Name", automatically "\MOVIE" and "\" are combined and become "\MOVIE\MC\".

Play USB File

Add the files saved in the MOVIE folder in the USB storage to the playlist.

Play USB Folder

Add the folders saved in the MOVIE folder in the USB storage to the playlist.

Play FTP File

Adds a file on the FTP server to the playlist.

Select the registry number of FTP server where the file is saved, and input the file name.

Play FTP File

Adds a folder on the FTP server to the playlist.

Select the registry Number of the FTP server where the folder is saved, and input the folder name.

Video

Add real-time images to the playlist.

Settings

File Name/Folder Name

Input a file name or folder name.

Edit

Edit the settings for a file or folder selected on the list.

Copy

Copy a file or folder selected from the list.

Paste

Paste the copied file or folder to the list.

Delete

Delete the selected row from the list.
