27.9.5.3 Custom Settings

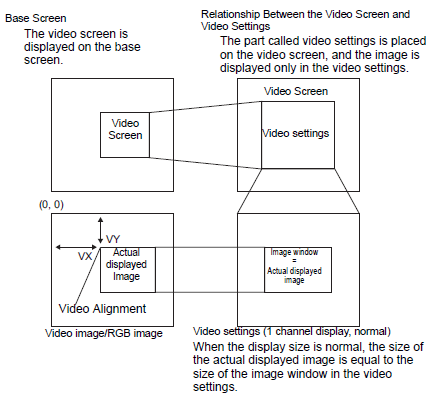

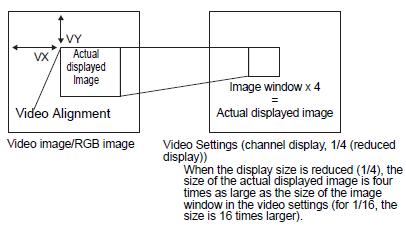

Video Alignment

Specify which part of the actual image should be displayed.

Creates a movie window for the movie size starting from (0, 0).

Specifies the necessary position and creates a video window.

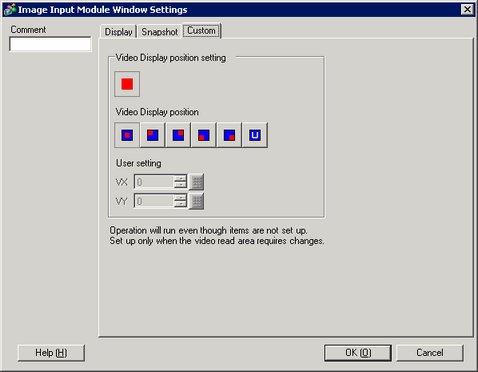

Video Display position

For each display screen, select the video display position from , , , , , and .

If is selected,the X/Y coordinates can be specified.
