T.2.9.6 In the Pass-Through Configuration Tool, is the checkbox for the target COM port number checked?

Cause

The checkbox for the target COM port number may not be checked.

Solution

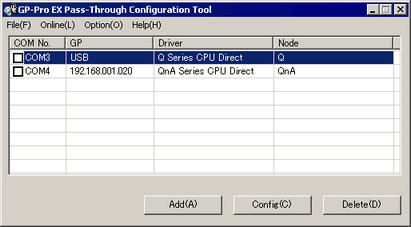

Start the Pass-Through Configuration Tool and select the desired COM port number from the following dialog box. Then, re-start the monitor from the ladder software.

For details about the ladder software, refer to the manual of the connected device.
