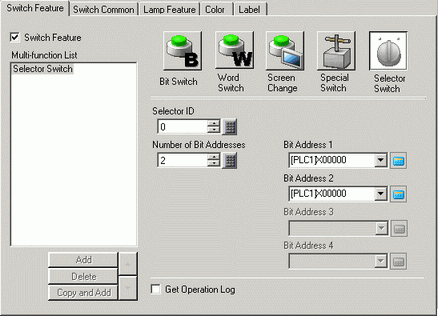

Selector ID
Set the Selector ID number. The setting range is from 0 to 2047.
Selector IDs are common to all screens in the project file. When placing a selector switch for which the same selector ID and bit address are selected on multiple screens, the operation from the previous screen will continue even if a screen change operation occurs.
When placing multiple selector switches with the same selector ID, when you set other bit address to individual switch, the switch will not function properly.
Number of Bit Addresses
Set the number of bit addresses to operate in a single Selector Switch from 2 to 4.
Bit Address 1 to 4
Set the bit addresses for the amount designated in [Number of Bit Addresses].
