5.18.8.4 Screen - Screen Information

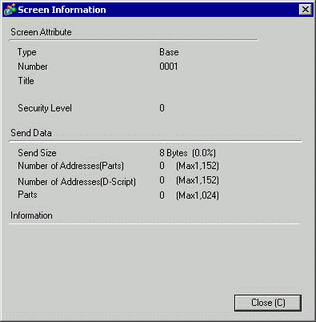

Displays the specified screen information.

Screen Attribute

Displays the screen information.

Type

Displays the type of the specified screen with [Base], [Window] or [Logic]. If you open the [Screen Info] where the Header/Footer can be edited, the Type is displayed as [Header] or [Footer].

Number

Displays the screen number.

Title

Displays the screen title.

Security Level

Displays the screen security level

Send Data

Displays an overview of data to be sent to the display unit.

Send Size

Displays the data size for one screen by the byte. Displays the usage rate of the screen total size in percentage in parenthesis.

Number of Addresses (Parts/D-Script)

Displays the total number of addresses being used for the Parts and the D Script in [Number of Addresses (Maximum Number of Addresses)]. If the number exceeds the maximum number of addresses, this displays in red.

Parts

Displays the total number of parts used for screens in Parts.

Information

Displays supplementary information.
