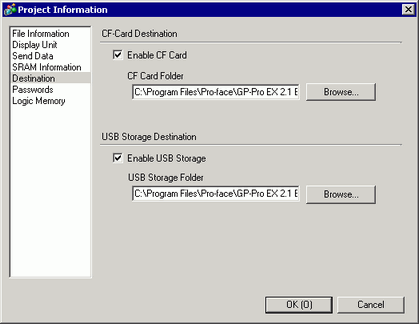

5.18.3.5 Project Information - Destination

Specifies the location to save data transferred to a CF Card or USB storage on the display unit.

Enable CF Card

Select whether or not to use a CF Card in a project.

CF Card Folder

Specifies the location to store data you save on the CF Card. Click [Browse...] to display the dialog box that designate the directory. In the initial settings, \Program Files\Pro-face\GP-Pro EX *.** (*.** shows the version) \Database\ (folder with the same name as the project file) is automatically selected as the destination folder.

Enable USB Storage

Select whether to use USB storage in the project.

USB Storage Folder

Specifies the location to store data you save in USB storage. Click [Browse...] to display the dialog box that designate the directory. In the initial settings, \Program Files\Pro-face\GP-Pro EX *.** (*.** shows the version) \Database\USB is selected.
