5.18.2.1 New - Display Settings

Series

Select the display unit from [GP2000 Series], [GP3000 Series], [GP4000 Series], [IPC Series (PC/AT)], [LT3000 Series], and [ST3000 Series].

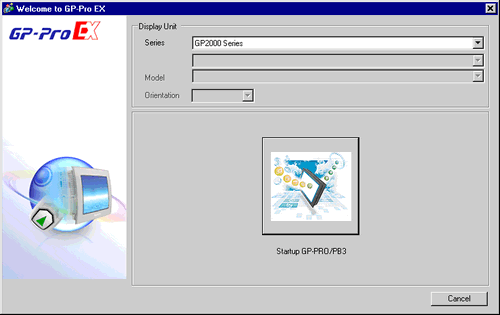

• If you select [GP2000 Series], the following dialog box appears.
  Click the icon to exit GP-Pro EX and start GP-PRO/PB3. GP-PRO/PB3 does not start if not installed.


Model

Select one of the models from the series.

Orientation

Select either the [Landscape] or [Portrait] display orientation. [IPC Series(PC/AT)] or [LT3000 Series]. When either is selected, this does not display.

Screen Size

[IPC Series(PC/AT)] If this option is selected as the Series, the Screen Size property sets the display size of screen data.

Revision

Select the display unit revision.

Mode

When [Model] is set to [AGP-3750], you can maximize drawing capacity by limiting functions in the user application.

• Multimedia
  User screen area is 10 MB. You can use all model-supported features.

• Increase Drawing Capacity
  User screen area is 16 MB, however you cannot use any multimedia functions.
