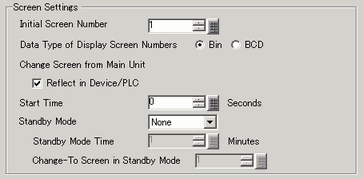

Initial Screen
Set the number of the screen that to appear at startup.
11.3 Choosing the Screen to Display when the Display Unit Turns on
Set the screen number from 1 to 9999 when the [Data Type of Display Screen Numbers] is [Bin], and from 1 to 7999 for [BCD].
Data Type of Display Screen Numbers
Select the data type of the screen number specified when changing screens from [Bin] or [BCD].
Change Screen from Display Unit
Set whether or not to reflect the settings in the device/PLC when the screen is changed from the display unit.
Reflect in Device/PLC
The currently displayed screen number is written into the connected device's [System Area Start Address] + 8 address. Select this option to change screens from a Change Screen Switch and Device/PLC.
11.5 Changing the Screen from both Touch and Device/PLC
When the [Reflect in Device/PLC] check box is cleared, after changing screens, please set up the system so the change screen number on the device/PLC is reset to zero.
If the value is not reset, screen change may not be possible, or the screen may change unexpectedly.
If the logic program is set up to reset the change screen number on the device/PLC after a change screen operation, please make sure the [Reflect in Device/PLC] check box is cleared.
Start Time
Set the time it takes for the display to start up after the power turns ON from 0 to 255 seconds.
Standby Mode
Select the standby mode from [None], [Screen OFF], or [Screen Change].
Disable
The screen does not change to the standby mode.
[Screen OFF]
Clears the screen if there is no screen touch, screen change or alarm message display after the [Standby Mode Time] passes.
Screen Change
Changes to the screen specified in [Change-To Screen in Standby Mode] if there is no screen touch, screen change or alarm message display after the [Standby Mode Time] passes.
When [Screen Change] is selected, the screen change switch where [Previous Screen] is set may not work properly.
Standby Mode Standby Mode Time
Set the time to automatically clear the screen to protect the display from 1 to 255 minutes. Automatically clears the screen display or changes to the specified screen when the specified time passes without any display operations.
Change-To Screen in Standby Mode
If [Screen Change] is selected for [Standby Mode], specifies the base screen number to switch to after [Standby Mode Time] passes.
Set the screen number from 1 to 9999 when the [Data Type of Display Screen Numbers] is [Bin], and from 1 to 7999 for [BCD].
If the global window is displayed, the window remains even when the base screen changes.
