This feature switches the backlight to red. It is useful when creating warning signals.
There are 16 condition settings available.
This feature is available to limited models.1.3 Supported Features
Action Mode, Action Address, Condition, Comment

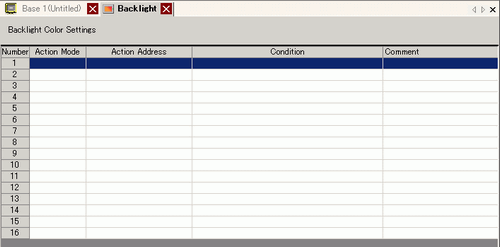

Double-click the line to display the [Backlight Color Settings] settings dialog box. The selected settings are shown in the box.
Selecting [Bit Action] / Selecting [Word Action]
Action Mode
Select either [Bit Action] or [Word Action].
Comment
Enter your comment using up to 20 characters.
Change condition to red
Configure the conditions for switching the backlight to red.

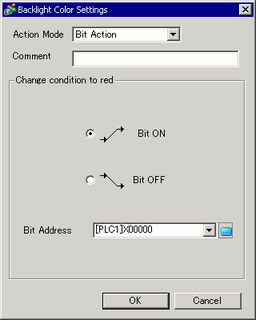

When you select [Bit Action] for [Action Mode]
Specifies whether to switch the color to red upon the specified [Bit Address] turning ON or OFF.

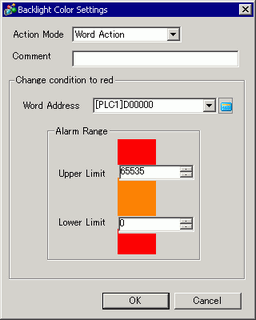

When you select [Word Action] for [Action Mode]
Displays in red when storing a value greater than the [Upper Limit] or less than the [Lower Limit]. The setting range between [Upper Limit] and [Lower Limit] is 0 to 65535.
