5.7.2 Procedure - Viewing Project Information / Destination Folder Settings

Specifies the location to temporarily store data before saving it on a CF Card or USB storage device.

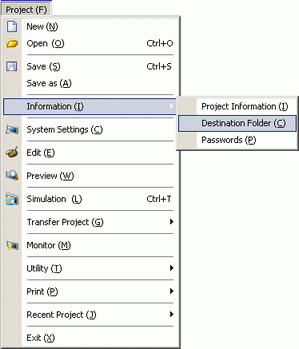

  1. From the [Project (F)] menu, point to [Information (I)] and select [Destination Folder (C)].

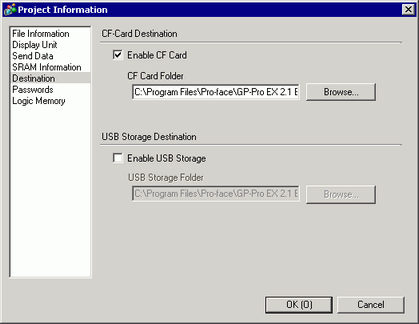

  2. The [Project Information] dialog box appears. Select [Destination] and either the [Enable CF Card] or [Enable USB Storage] check box.

  3. Click [Browse...] and designate the folder.

    • In the initial settings, \Program Files\Pro-face\GP-Pro EX *.** (*.** shows the version) \Database\ (folder with the same name as the project file) is automatically selected as the destination folder.

    Click [OK] to return to the [Project Information] dialog box.

  4. Click [OK]. If you specify the destination folder for the first time, the following message appears to confirm. Click [Yes (Y)].

A folder ([data], [file]) is automatically created to store the data to be saved to the CF Card or the USB storage device.
