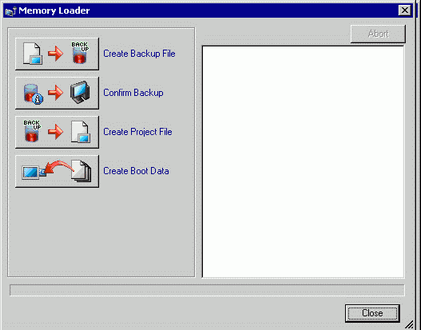

Create Backup File
In the destination folder you selected in [Select Folder], create backup data (*.cml) for the project currently open in GP-Pro EX (or the project selected in [Select project]) and the memory loader to start the data on the display unit. Please select the CF card or USB storage root folder as the destination.
This selection is not available if you selected IPC series as the unit type.
If the [CF Card Folder] or [USB Storage Folder] is already set up, the folder path is displayed. Move or copy all generated data to the CF Card or USB storage root folder.
Confirm Backup Data
[System Information], [Project Information], [Backup Size], and the names and dates of each backup file.
About Backup File Name
The backup file default name depends on the display model.
AGP-3600T, 3600U, 3510T, 3500T, 3500S, 3500L, 3400T, 3400S
→MEM3X00.CML
AGP-3600T, 3750T, 3650T, 3650U, 3560T, 3550T, 3450T
→MEM3X50.CML
AGP-3300T, 3300S, 3300L, 3300U, 3301S, 3301L
→MEM330X.CML
AGP-3302B (MPI)
→MEM3302.CML
AGP-3300T
→ MEM3X0XZ.CML
AGP-3200A
→ MEM320XZ.CML
LT-3201A
→MEM32XXL.CML
LT-3300S, LT-3300L, LT3301L
→MEM330XL.CML
AST-3211A (MPI), AST-3201A (SIO), AST-3301B
-> MEM320XZ.CML
AST-3301S, 3301T
→MEM3X0XZ.CML
AST-3401T, AST-3501C, AST-3501T
-> MEM3X01Z.CML
AGP-3300HS, AGP-3300HL
-> MEM3300H.CML
AGP-3310HT
→ MEM3X00H.CML
GP-4105, GP-4106, GP-4107
→MEM410XP.CML
GP models with control functionality (for example models with "-D81", "-FN1M", or "-CA1M" in their names) are not listed. Use the above list with the GP model name minus the control portion.
For example, AGP-3500T-D81 → AGP-3500T
Create Project File
You can create a project file (*.prx) from backup data (*.cml).
Create Boot Data
In the destination folder you selected in [Select Folder], create the memory loader tool necessary for upload from the display unit to the CF Card/USB storage device and for download from the CF Card/USB storage to the display unit. Please select the CF card or USB storage root folder as the destination.
This selection is not available if you selected IPC series as the unit type.
If the [CF Card Folder] or [USB Storage Folder] is already set up, the folder path is displayed. Move or copy all generated data to the CF Card or USB storage root folder.
