Use an Ethernet connection to transfer project files (*.prx) over the LAN.
To communicate using Ethernet, Ethernet settings, such as the IP address and port number, must be set up on the display unit.

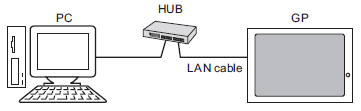

Make sure to use a HUB for Ethernet Communication. 1:1 connections using a cross cable may not be possible depending on the type of PC and network card you are using.

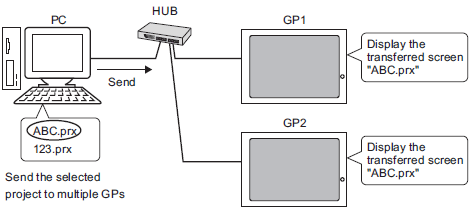

Transfer from PC to Display Unit (Send)
You can send the selected project files (*.prx) to the display unit to display the project.
The same project can be sent to multiple display units on the network.
33.3.1 Transfer - Transferring from Computer to Display Unit (Send)
33.3.3 Transfer - Transferring Projects Using the Factory Set IP Address

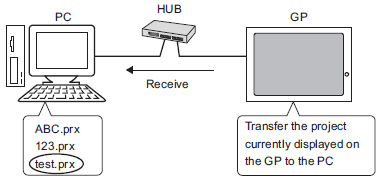

Transfer from Display Unit to PC (Receive)
Project data stored in the display unit can be saved to the PC as a new project file (*.prx)
Even if multiple display units exist on the network, data can only be received from one display unit.
33.3.2 Transfer - Transferring from Display Unit to Computer (Receive)
