Please refer to the Settings Guide for details.
21.9.1 D-Script/Common [Global D-Script] SettingsSee the following for further information about script commands.
21.11 Built-In Function (Instruction) / Conditional Expressions
Please refer to the Settings Guide for details.21.9.1 D-Script/Common [Global D-Script] Settings
See the following for further information about script commands.21.11 Built-In Function (Instruction) / Conditional Expressions

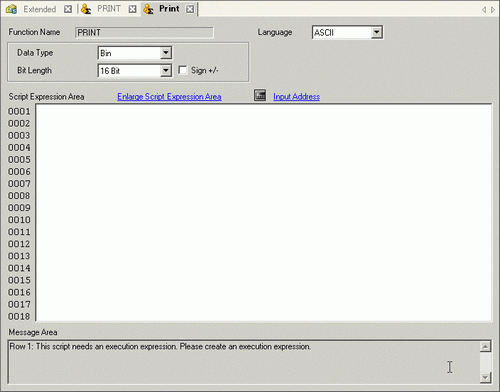

For example, while displaying the user created function "PINIT" from a previous procedure, create "Print".
On the [D-Script] dialog box, open the script and user defined function you want to display simultaneously.

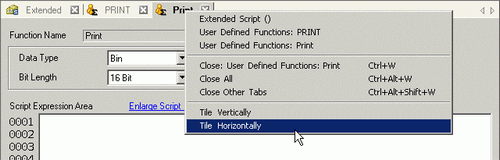

If you want to tile horizontally, right-click the tab of the screen to display at the bottom and then click [Tile Horizontally].

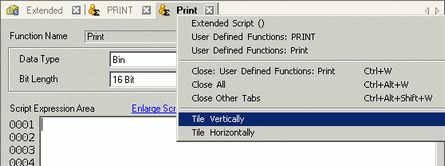

If you want to tile vertically, right-click the tab of the screen to display to the right and then click [Tile Vertically].

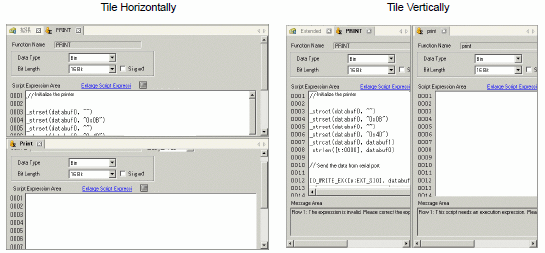

Screens are tiled horizontally or vertically.
