Summary
Sends the data in the data buffer with Extended SIO according to the size of Number of Send Bytes. The contents of the data buffer specified with Parameter 2 are sent from Extended SIO by the length specified with Parameter 3.
It can only be used in an Extended Script.

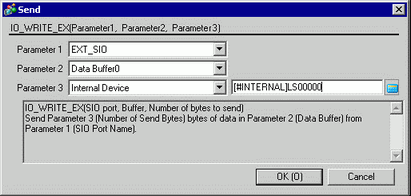

Format
IO_WRITE_EX ([p:EXT_SIO], Data Buffer, Number of Send Bytes)
Parameter 1: [p:EXT_SIO]
Parameter 2: Data Buffer
Parameter 3: Numeric value, Internal Device, Temporary address (The valid range for Parameter 3 is from 1 to 1024.〉
Example expression:
IO_WRITE_EX ([p:EXT_SIO], databuf0, 10)
In the example above, 10 bytes of data in "databuf0" are sent from Extended SIO.
