Write a temperature value to be specified in the word address D100.
From Monday to Friday, a temperature setting of 100 is written to the word address D100 at the start time (8:00) for the running mode, and a temperature setting of 40 is written at the end time (17:00) for standby mode.

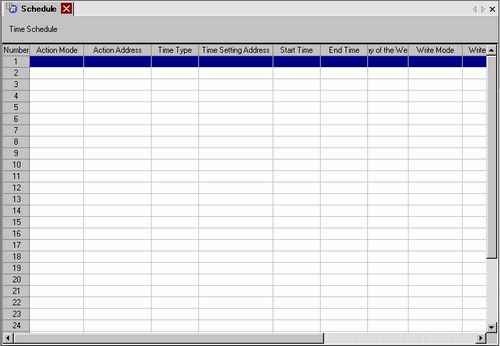

From the [Common Settings (R)] menu, select [Time Schedule (F)] or click
from the toolbar. The Time Schedule tab appears.

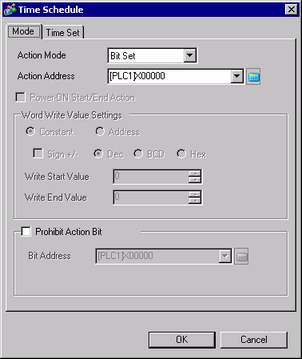

Click the row of the schedule number you want to register (for example, Number 1). The settings dialog box appears.
You can register up to 32 schedules (Number 1 to Number 32) in the schedule function.
From [Mode], select [Word Set 16].
In [Action Address], set the target bit address (for example, M100).
Select [Constant] and set the [Write Start Value] to "100".

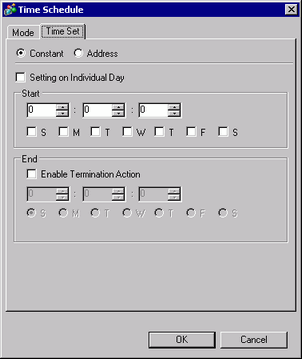

Select the [Time Set] tab then select [Constant].
Set the Start Time and Day. Set the Start Time as 8:00 and select the Monday to Friday check boxes. Clear the [Setting on Individual Day] check box.
Set the end time. Select the [Enable Termination Action] check box and set the end time as 17:00.
Select the [Action] tab and set the [Write End Value] to "40".
Click [OK]. The settings appear in the Schedule Settings tab.
