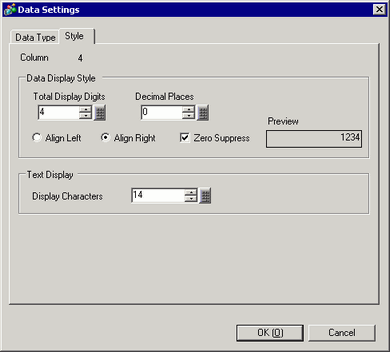

24.8.5.9 Print (Custom Settings)/Data Settings - Style

Total Display Digits

Select the number of display digits for the data from 1 to 17. The numbers displayed after the decimal point are also included in the number of digits.

(For example, Total Display Digits is "5", and the Decimal Places is "2")

Decimal Places

Set the number of display digits after the decimal point, from: 0 to [Total Display Digits]-1.
This cannot be set when the [Data Type] is [Hex].

Align Right/Align Left

Select the data display position.

Zero Suppress

If this option is selected, leading zeros are not displayed.

For example, Number of Display Digits = 4

Preview

Preview the selected style.

Display Characters

Set the number of characters to be displayed in the Data column cells from 1 to 20 single-byte characters.
