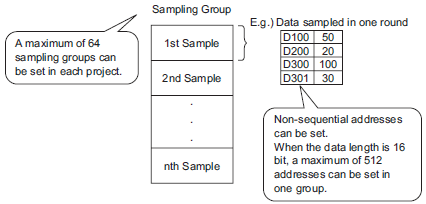

Select which address data and which timing will be used for sampling. The sampled data is handled as a group based on those settings (called a "Sampling Group")
A maximum of 64 sampling groups can be set in each project. The number of groups that can be set in a system depends on the Cycles and the Addresses.
When there is only one sampling group, the maximum number of data (number of addresses) that can be sampled at one time is 512 for 16 bit length, and 256 for 32 bit length.

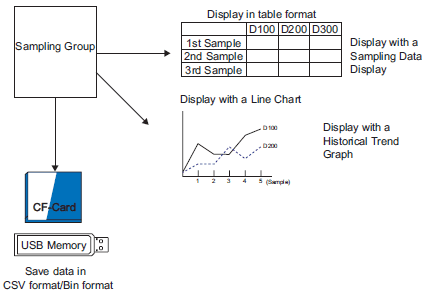

Sampled data is displayed by group unit on the screen of display unit, and saved to CF Card or USB storage.
Same structure as when you save to the USB storage device.

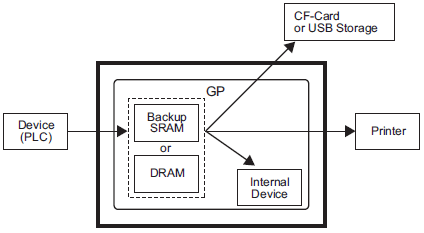

Data Sampling Flow

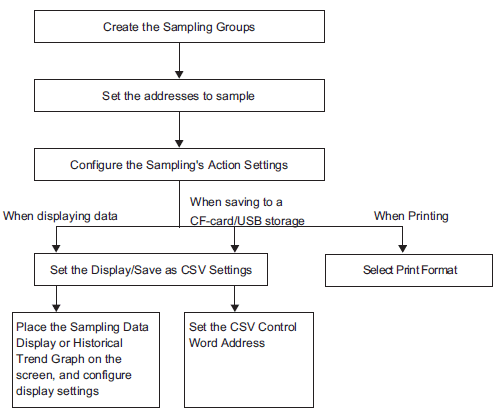

Sampling Flow
