24.11.4.1 Process for Normal Save

Save data from Sampling Group1 as file name "SA00001.csv" in the CF Card.

  1. In D301, store the File 1.

  2. Write the command "0001h" to D300. The CSV output begins.

  3. When the data is successfully saved to the CF Card, the status value "0000h" is written from the display unit to D300.
    "SA00001.csv" is created in the CF Card's "SAMP01" folder.

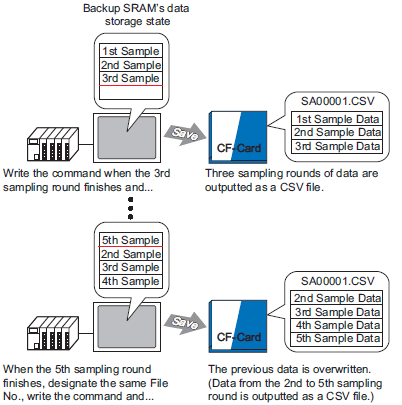

File Save Image

For example, [Overwrite old data after finishing the specified cycles] is selected, Sampling Occurrences = 4
