In the Basic Settings, a simple printing format can be created with only a few settings using the fixed preset formats.
The format is different depending on whether the [Overwrite old data after finishing the specified cycles] is selected or cleared.
When [Overwrite old data after finishing the specified cycles] is Selected (Real-time Print)
Print Format Settings
Real-time Print
Item Name (Vertical): checked
Ruled Line: Enable

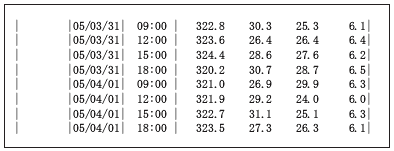

Print Image
All of the selected addresses data is printed.
When [Overwrite old data after finishing the specified cycles] is Cleared

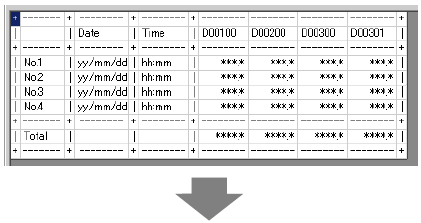

Print Format Settings
Print Mode: Real-time Print/Batch
Item Name (Horizontal): checked
Item Name (Vertical): checked
Total row: checked
Ruled Line: Enable

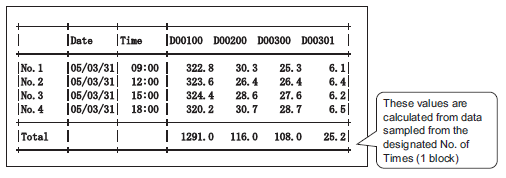

Print Image
The Item Name row is printed in the 1st row. The Date column and Time column appear as [Date] and [Time]. Each data column has an address printed as its item name.
All of the selected addresses data is printed.
In the Item Name column is printed the sampling round. (For example, 3rd round -> "Number 3")
The Total row is printed after the data display rows.
Regardless of whether Real-time Print or Batch is used, a form feed occurs after printing.
