36.3.3 Remote PC Access (RPA)

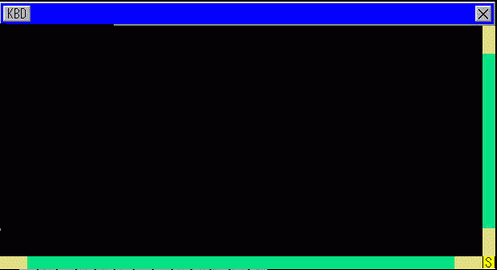

Remote PC Access Window Display

Define popup keypad use.

Close Window Screen

Close the RPA display window. If you started [Bit Address] on the RPA display window, press the [Close the Window] button to turn OFF the bit address.

Scroll Bar

When you touch the yellow area, the scroll bar moves by 10 pixels at a time.

When you scroll by touching the black part, the screen moves page by page.

When you click the green area, you can drag the mouse to move the screen.

Display Area

Display the contents of server computer.

Remote PC Access Window Display Operation

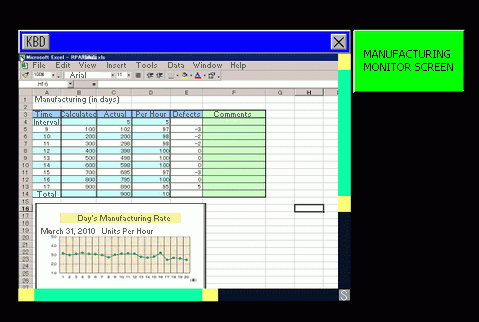

  1. When you touch [RPA Window Display Switch], the RPA window screen and the server computer screen display.

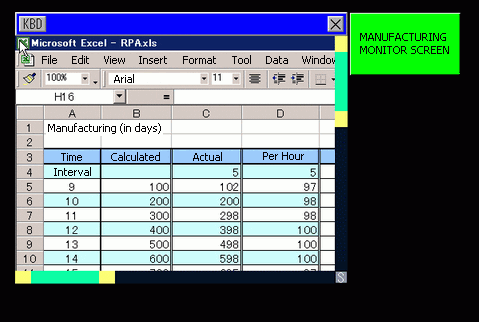

  2. You can scroll the screen area that cannot display in the remote PC access window display with the scroll bar.

  3. To enter data from the keyboard, touch the button to display the keypad associated with the [Remote PC Access Window Display].

  4. To close the window, touch the [RPA Window Display Switch] again or touch the button.
    If you start the remote PC access window display by the "Bit Trigger", the bit address turns OFF automatically when you press the button.

Method for Moving the Popup Keypad

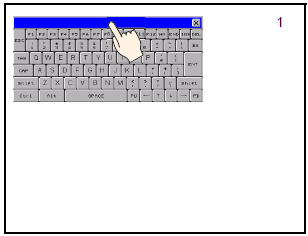

  1. Touch the upper part of the popup keypad.

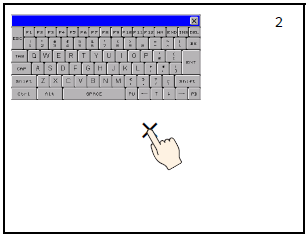

  2. Touch the desired position on the screen where you want the display to move.

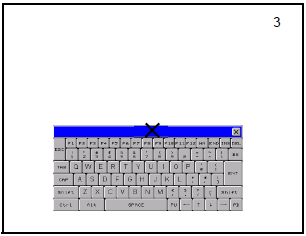

  3. The popup keypad displays in the position that was touched.

    • If the popup keypad is larger than the specified position allows, the keypad is adjusted to a position where it can appear.
